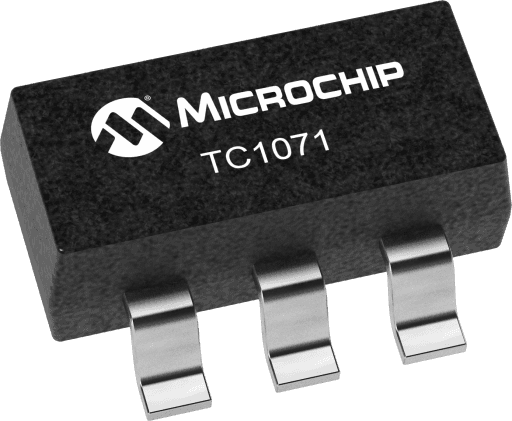

Microchip TC1071VCT713

Manufacturer No:

TC1071VCT713

Manufacturer:

Microchip

Package:

SC-74A, SOT-753

Description:

The TC1070, TC1071, and TC1187 are adjustable LDOs designed to supersede a variety of older (bipolar) voltage regulators. Total supply current is typ

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC1071VCT713 information

Microchip TC1071VCT713 technical specifications, attributes, parameters and parts with similar specifications to Microchip TC1071VCT713.

Type
Parameter

VIN Min (V) V (volt)
2.7

VIN Max V (volt)
6

IOUT #1 Max mA (milliampere)
100

Rated IOUT Max mA (milliampere)
100

Quiescent Current µA (microampere)
50

Voltage Drop Typ (mV)
180

Adjustable VOUT
Yes

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip TC1071VCT713.

The TC1070, TC1071, and TC1187 are adjustable LDOs designed to supersede a variety of older (bipolar) voltage regulators. Total supply current is typically 50µA at full load (20 to 60 times lower than in bipolar regulators). The devices’ key features include ultra low noise operation, very low dropout voltage — typically 85mV (TC1070); 180mV (TC1071); and 270mV (TC1187) at full load, and fast response to step changes in load. Supply current is reduced to 0.5 µA (max) when the shutdown input is low. The devices incorporate both over-temperature and over-current protection. Output voltage is programmed with a simple resistor divider from VOUT to ADJ to GND. The TC1070, TC1071, and TC1187 are stable with an output capacitor of only 1µF and have a maximum output current of 50mA, 100mA, and 150mA, respectively. For higher output versions, please see the TC1174 (IOUT = 300mA) data sheet.

Low Ground Current for Longer Battery Life
Adjustable Output Voltage
Very Low Dropout Voltage
Choice of 50mA, 100mA, 150mA Output (TC1070, TC1071, TC1187, Respectively)
Power-Saving Shutdown Mode
Over-Current and Over-Temperature Protection
Pin Compatible with Bipolar Regulators
