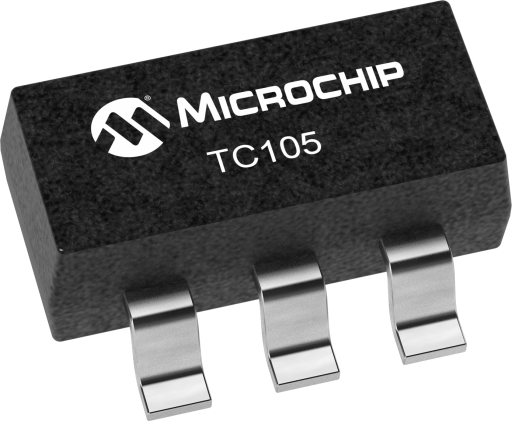

Microchip TC105333ECTTR
Microchip TC105333ECTTR

Microchip TC105333ECTTR

Manufacturer No:

TC105333ECTTR

Manufacturer:

Microchip

Package:

SC-74A, SOT-753

Description:

The TC105 is a step-down (Buck) switching controller that furnishes output currents of up to 1A (max) while\r\ndelivering a typical efficiency of 92%.

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC105333ECTTR information

Microchip TC105333ECTTR technical specifications, attributes, parameters and parts with similar specifications to Microchip TC105333ECTTR.

  • Type
  • Parameter
  • Max Duty Cycle (%)
  • 100.0
  • Input Voltage Range Max V (volt)
  • 10
  • Input Voltage Range Min V (volt)
  • 0.9
  • # of Outputs
  • 1
  • Output Current
  • 1000
  • Driver Type
  • Buck
  • Quiescent Current µA (microampere)
  • 0.057
  • Synchronous Rectifier
  • No
  • Temp Range Max °C (degrees Celsius)
  • 85
  • Temp Range Min °C (degrees Celsius)
  • -40

Download datasheets and manufacturer documentation for Microchip TC105333ECTTR.

Data Sheets:

Application Notes:

The TC105 is a step-down (Buck) switching controller that furnishes output currents of up to 1A (max) while delivering a typical efficiency of 92%. The TC105 normally operates in pulse width modulation mode (PWM), but automatically switches to pulse frequency modulation (PFM) at low output loads for greater efficiency. Oscillator frequency is 300 KHz, allowing use of small (22 µH) inductors. Supply current draw is only 102 µA (max), and is reduced to less than 0.5 µA when the SHDN input is brought low. Regulator operation is suspended during shutdown. The TC105 accepts a maximum input voltage of 10V. The TC105 is housed in a tiny 5-pin SOT-23A package, occupies minimum board space, and is ideal for a wide range of applications.

  • 57 µA (Typ) Supply Current
  • 1A Output Current
  • 0.5 µA Shutdown Mode
  • 300 KHz Switching Frequency for Small Inductor Size
  • Programmable Soft-Start
  • 92% Typical Efficiency
