TI TAS5112ADCAR

Manufacturer No:

TAS5112ADCAR

Manufacturer:

Package:

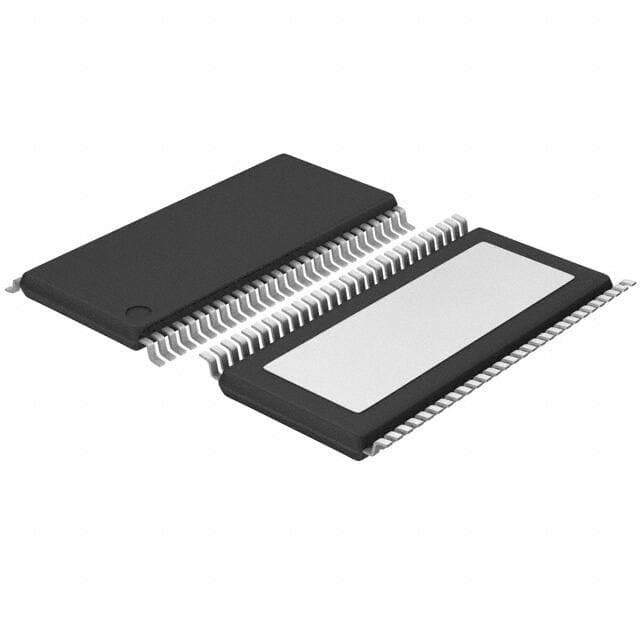

56-TFSOP (0.240, 6.10mm Width) Exposed Pad

Description:

1mA mA 20 kHz kHz 62W W Audio Amplifiers 6.1mm mm 3.6V V 56 pins 56-TFSOP (0.240, 6.10mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TAS5112ADCAR information

TI TAS5112ADCAR technical specifications, attributes, parameters and parts with similar specifications to TI TAS5112ADCAR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
56-TFSOP (0.240, 6.10mm Width) Exposed Pad

Number of Pins
56

Weight
236.888615mg

Operating Temperature
0°C~70°C TA

Packaging
Tape & Reel (TR)

Series
PurePath Digital?

Feature
Depop, Digital Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
56

ECCN Code
EAR99

Type
Class D

Additional Feature
IT ALSO REQUIRES 16V TO 30.5V SUPPLY

HTS Code
8542.33.00.01

Subcategory
Audio/Video Amplifiers

Voltage - Supply
16V~25.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Terminal Pitch
0.5mm

Base Part Number
TAS5112

Pin Count
56

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
3V

Number of Channels
2

Nominal Supply Current
1mA

Output Power
62W

Supply Type
Triple

Bandwidth
20 kHz

Max Output Power
62W

Dual Supply Voltage
29.5V

Max Output Power x Channels @ Load
62W x 2 @ 6 ?

Harmonic Distortion
10%

Length
14mm

Height Seated (Max)
1.2mm

Width
6.1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI TAS5112ADCAR.

TAS5112ADCAR Overview

The device is embedded in 56-TFSOP (0.240, 6.10mm Width) Exposed Pad .There is a package in the form of Tape & Reel (TR) .In addition, 56 terminations are used, which entail the termination of a transmission line with a device whose characteristic impedance matches the line's.Amp parts is configured to produce 2-Channel (Stereo) as Amp partss output.Amp parts is an electrical device of type Class D .The computer or other communication device has 56 pins, which are pronged contacts.The electronic component is mounted in the way of Surface Mount .This electrical device operates at 16V~25.5V volts.This device is equipped with a total of 2 channels.During operation, Depop, Digital Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown can be ensured.During operation, the temperature should not exceed 0°C~70°C TA .A total of 56 pins are present on the device.Amp parts is part of Audio/Video Amplifiers .Amp parts is a member of the TAS5112 family.The electronic component is mounted in the way of Surface Mount .There is a maximum output power of 62W kWh per hour from this electronic component.During normal operation, the supply voltage (Vsup) should remain above 3V .Upon reaching 3.6V , the maximum supply voltage (Vsup) is reached.Amp parts is an electronic part wAmp partsh a supply type of Triple .Amp parts belongs to the series PurePath Digital? .There are additional features of IT ALSO REQUIRES 16V TO 30.5V SUPPLY on the chip.

TAS5112ADCAR Features

56-TFSOP (0.240, 6.10mm Width) Exposed Pad package
56 pin count
TAS5112 family
62W kWh per hour
PurePath Digital? series

TAS5112ADCAR Applications

There are a lot of Texas Instruments
TAS5112ADCAR audio amplifiers applications.

Integrator and differentiator circuits
Logarithmic and exponential operation circuits
Multiplication and division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
