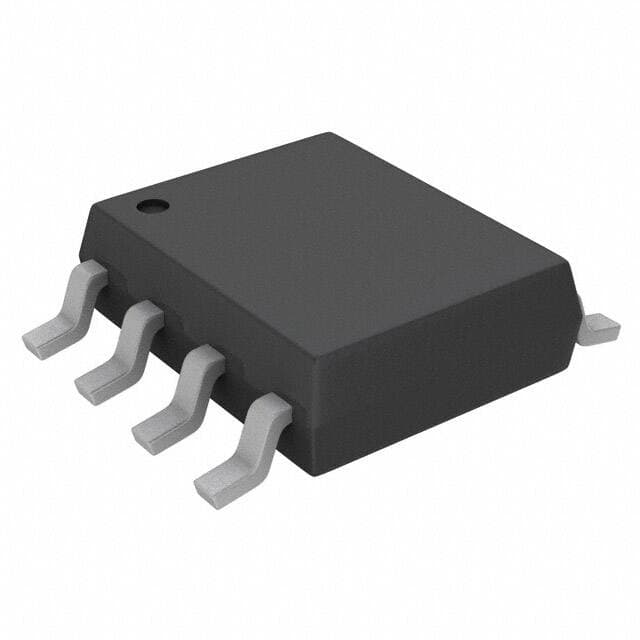

TOSHIBA TA75W393FU,LF
TOSHIBA TA75W393FU,LF

TOSHIBA TA75W393FU,LF

Manufacturer No:

TA75W393FU,LF

Manufacturer:

TOSHIBA

Package:

8-TSSOP, 8-MSOP (0.110, 2.80mm Width)

Description:

Surface Mount Tape & Reel (TR) 16nA mA 1300 ns μs Linear Comparators 250nA pA 2015 5mV mV Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TA75W393FU,LF information

TOSHIBA TA75W393FU,LF technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA TA75W393FU,LF.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 8-TSSOP, 8-MSOP (0.110, 2.80mm Width)
  • Number of Elements
  • 2
  • Usage Level
  • Industrial grade
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2015
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • Type
  • General Purpose
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Number of Functions
  • 2
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.65mm
  • Base Part Number
  • TA75W393
  • JESD-30 Code
  • R-PDSO-G8
  • Output Type
  • CMOS, DTL, MOS, Open-Collector, TTL
  • Output Current
  • 16nA
  • Quiescent Current
  • 2mA
  • Response Time
  • 1300 ns
  • Input Offset Voltage (Vos)
  • 5mV
  • Supply Voltage Limit-Max
  • 36V
  • Max Input Current
  • 250nA
  • Input Bias Current
  • 250nA
  • Voltage - Input Offset (Max)
  • 5mV @ 5V
  • Current - Input Bias (Max)
  • 0.25μA @ 5V
  • Current - Output (Typ)
  • 16nA @ 5V
  • Height Seated (Max)
  • 1.3mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for TOSHIBA TA75W393FU,LF.

Datasheets:

TA75W393FU,LF Overview


In order to make transportation easier, it is packaged in 8-TSSOP, 8-MSOP (0.110, 2.80mm Width) .A comparator with an output type of CMOS, DTL, MOS, Open-Collector, TTL is being used.We ship the part through Tape & Reel (TR) .As you can see, the comparator has8 terminals.Electronic comparator is capable of performing numerous tasks when powered by 5V voltage.In general, the chip type can be classified as General Purpose .A Surface Mount mounting type is recommended.A temperature setting of -40°C~85°C should be used for the operating temperature in order to prevent malfunctions.Alternatively, you may search for TA75W393 to find more pin-to-pin solutions for your specific needs.There is 2mA current flowing in this comparator.There is a Surface Mount on the board for mounting to a PCB or other board.Electronic comparator is possible to input a maximum of 250nA current into the device.

TA75W393FU,LF Features


CMOS, DTL, MOS, Open-Collector, TTL output capability
General Purpose IC
Operates under -40°C~85°C
Quiescent Current: 2mA


TA75W393FU,LF Applications


There are a lot of Toshiba Semiconductor and Storage
TA75W393FU,LF linear comparators applications.


  • Current and voltage sensing
  • Analog front end
  • Power management
  • Point of load regulators
  • DC/DC and AC/DC power supplies
  • System control and monitoring
  • Wearable Devices
  • Mobile Phones and Tablets
  • Battery-Powered Electronics
  • General Purpose Low Voltage Applications
