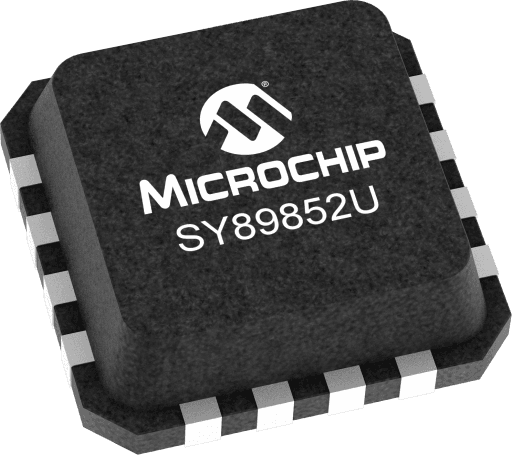

Microchip SY89852UMG

Manufacturer No:

SY89852UMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

2.5V/3.3V Low Power 2:1 LVPECL MUX with Internal Input Termination

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89852UMG information

Microchip SY89852UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89852UMG.

Type
Parameter

Description
2:02

Input
ANY

Output
LVPECL

Supply Voltage
2.5/3.3V

Max Freq (GHz)
2.5

Icc (mA)
23

Max Within Device Skew (ps)
0

OE
False

Input Mux
False

Max Prop Delay (ps)
340

Download datasheets and manufacturer documentation for Microchip SY89852UMG.

Data Sheets:

c97ba9965eb9a3caf19c5a46f4e613c7.pdf

User Guide:

6084660217228cf9555cef95b6bff0b3.pdf

The SY89852U is a 2.5V/3.3V precision, high-speed, 2:1 differential MUX capable of handling clocks up to 2.5GHz and data streams up to 2.5Gbps.The differential input includes Micrel's unique, patent pending 3-pin input termination architecture that allows users to interface to any differential signal (AC- or DC-coupled) as small as 100mV (200mVpp) without any level shifting or termination resistor networks in the signal path. The unique, patent input isolation design minimizes crosstalk minimizing crosstalk induced jitter. The outputs are 800mV LVPECL, with extremely fast rise/fall time guaranteed to be less than 180ps.The SY89852U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY89852U is part of Micrel's high-speed, Precision Edge® product line.

Provides a low jitter copy of the selected input
Superior alternative to the EP58 2:1 MUX
Low power: 58mW (2.5V nominal, no load)
DC-to >2.5Gbps data rate throughput
DC-to >2.5GHz clock fMAX
<340ps In-to-Out tpd
<180ps tr/tf time
<1psrms random jitter
<10pspp deterministic jitter
<10pspp total jitter (clock)
<0.7psrms crosstalk induced jitter
Unique, patent-pending input isolation design minimizes crosstalk
Unique, patent-pending input termination and VT pin accepts DC-coupled and AC-coupled inputs (CML, PECL, LVDS)
Typical 800mV (100k) LVPECL output swing
Power supply 2.5V +5% or 3.3V +10%
Industrial temperature range -40°C to +85°C
Available in ultra-small (3mm x 3mm) 16-pin QFN package
