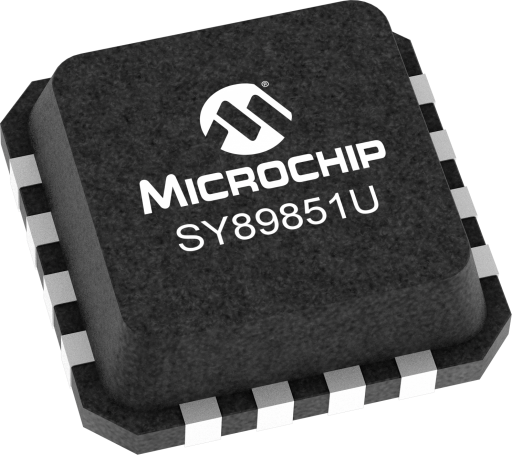

Microchip SY89851UMG

Manufacturer No:

SY89851UMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

2.5/3.3V Low Power 1:2 LVPECL Fanout Buffer

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89851UMG information

Microchip SY89851UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89851UMG.

Type
Parameter

Description
1:2

Input
ANY

Output
LVPECL

Supply Voltage
2.5/3.3

Max Freq (GHz)
3

Icc (mA)
32

Max Within Device Skew (ps)
20

OE
False

Input Mux
False

Number Of Outputs
0

Buffer Type
Fanout

Fanout
1:2

Max Prop Delay (ps)
340

Download datasheets and manufacturer documentation for Microchip SY89851UMG.

Data Sheets:

52cd844730aabd72eb24f1ee55c84682.pdf

User Guide:

d3918b5abeb8e9b04ee72772b19d4409.pdf

The SY89851U is a low jitter, low skew, high-speed 1:2 differential fanout buffer optimized for precision telecom and enterprise server distribution applications. The SY89851U distributes clock frequencies from DC to >3GHz, and data rates to 2.5Gbps guaranteed over temperature and voltage.The SY89851U differential input includes Micrel's unique, 3-pin input termination architecture that directly interfaces to any differential signal (AC- or DC-coupled) as small as 100mV (200mVpp) without any level shifting or termination resistor networks in the signal path. The outputs are 800mV, 100Kcompatible LVPECL with extremely fast rise/fall time guaranteed to be less than 180ps.The SY89851U operates from a 2.5V ±5% or 3.3V ±10% supply and is guaranteed over the full industrial temperature range of –40°C to +85°C. The SY89851U is part of Micrel's high-speed, Precision Edge® product line.

Precision 1:2, 800mV LVPECL fanout buffer
Low power consumption: 80mW typ. (2.5V)
– DC to >3GHz clock throughput
– <340ps propagation delay
– <180ps rise/fall time
– <20ps output-to-output skew
– <1psRMS random jitter
– <10psPP deterministic jitter
– <10ps PP total jitter (clock)
Unique, patented input termination and VT pin accepts DC- and AC-coupled inputs (CML, LVPECL, LVDS)
100K LVPECL-compatible outputs
Power supply 2.5V ±5% or 3.3V ±10%
–40°C to +85°C industrial temperature range
Available in 16-pin (3mm x 3mm) MLF® package
