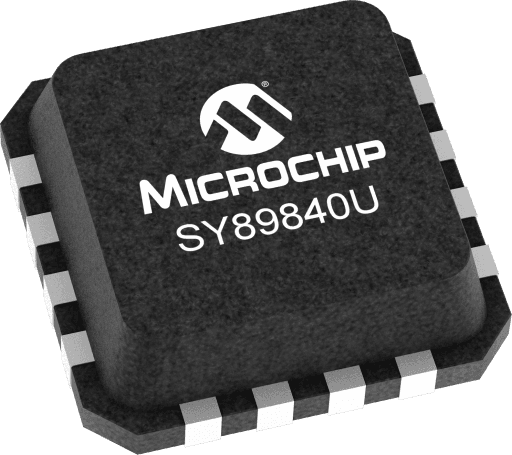

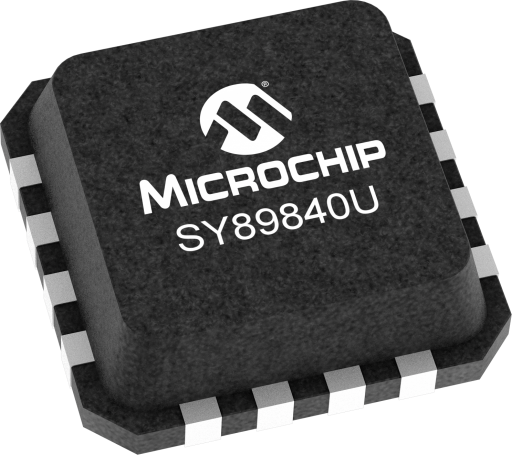

Microchip SY89840UMG

Manufacturer No:

SY89840UMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

Precision 2:1 LVPECL MUX w/ RPE \u0026 FSI

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89840UMG information

Microchip SY89840UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89840UMG.

Type
Parameter

Description
2:01

Input
ANY

Output
LVPECL

Supply Voltage
2.5/3.3V

Max Freq (GHz)
2

Icc (mA)
65

Max Within Device Skew (ps)
0

OE
False

Input Mux
False

Max Prop Delay (ps)
880

Download datasheets and manufacturer documentation for Microchip SY89840UMG.

Data Sheets:

3f706fb7e19e83bd50960887bbdeaffc.pdf

User Guide:

18eff836e8ac45318184096843c82df8.pdf

The SY89840U is a low jitter PECL, 2:1 differential input multiplexer (MUX) optimized for redundant source switchover applications. Unlike standard multiplexers, the SY89840U unique 2:1 Runt Pulse Eliminator (RPE) MUX prevents any short cycles or “runt" pulses during switchover. In addition, a unique Fail-Safe Input protection prevents metastable conditions when the selected input clock fails to a DC voltage (voltage between the pins of the differential input drops below 100mV).The differential input includes Micrel's unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-coupled) as small as 100mV (200mVpp) without any level shifting or termination resistor networks in the signal path. The output is 800mV, 100K compatible LVPECL with fast rise/fall times guaranteed to be less than 190ps.The SY89840U operates from a 2.5V ±5% or 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY89840U is part of Micrel's high-speed, Precision Edge® product line.

Selects between two sources, and provides a glitch-free, stable LVPECL output
Wide operating frequency: 1kHz to >1.5GHz
<880ps In-to-Out tpd
<190ps tr/tf
Unique patent-pending input isolation design minimizes crosstalk
Fail-safe input prevents oscillations
140fsRMS phase jitter (typ.)
<0.7psRMS MUX crosstalk induced jitter
Unique patent-pending input termination and VT pin accepts DC-coupled and AC-coupled inputs (CML, PECL, LVDS)
800mV LVPECL output swing
2.5V ±5% or 3.3V ±10% supply voltage
-40°C to +85°C industrial temperature range
Available in 16-pin (3mm x 3mm) QFN package

User Guide
