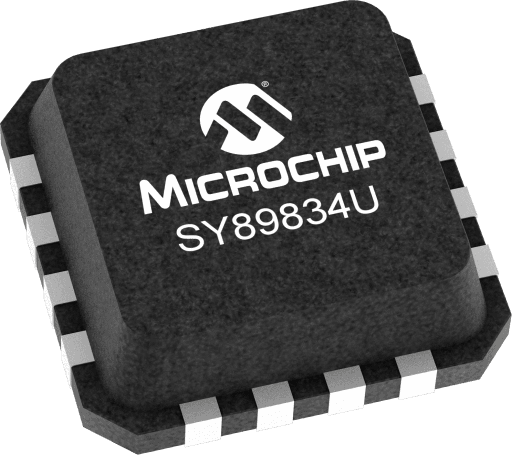

Microchip SY89834UMG
Microchip SY89834UMG

Microchip SY89834UMG

Manufacturer No:

SY89834UMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

2.5V/3.3V 1:4 LVTTL-to-PECL Fanout Buffer/Translator

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89834UMG information

Microchip SY89834UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89834UMG.

  • Type
  • Parameter
  • Description
  • 2:4
  • Input
  • LVTTL
  • Output
  • LVPECL
  • Supply Voltage
  • 2.5/3.3V
  • Max Freq (GHz)
  • 1
  • Icc (mA)
  • 50
  • Max Within Device Skew (ps)
  • \u003c20
  • OE
  • False
  • Input Mux
  • True
  • Max Prop Delay (ps)
  • \u003c500

Download datasheets and manufacturer documentation for Microchip SY89834UMG.

Data Sheets:

User Guide:

The SY89834U is a high-speed, 1GHz LVTTL/CMOS-to-LVPECL fanout buffer/translator optimized for high-speed ultra-low skew applications. The input stage is designed to accept two single-ended LVTTL/CMOS compatible signals that feed into a 2:1 MUX. The selected input is translated and distributed as four differential 100K LVPECL outputs. Within device skew is guaranteed to be less than 20ps over supply voltage and temperature.The single-ended input buffers accept TTL/CMOS logic levels. The internal threshold of the buffers is defined as VCC/2.The SY89834U is a part of Micrel's high-speed Precision Edge® family. For applications that require a different I/O combination, choose from a comprehensive product line of highspeed, low-skew fanout buffers, translators and clock generators.



    • Selects between two LVTTL/CMOS inputs and provides 4 LVPECL output copies
    • DC-to >1.0GHz throughput
    • <500ps propagation delay (IN-to-Q)
    • <20ps within-device skew
    • <225ps rise/fall time
    • <1psRMS cycle-to-cycle jitter
    • <1psRMS random jitter
    • <10psPP deterministic jitter
    • <10psPP total jitter (clock)
    • Low voltage 2.5V and 3.3V supply operation
    • 100K LVPECL outputs
    • Industrial temperature range: -40°C to +85°C
    • Includes a 2:1 MUX select input
    • Accepts single-ended TTL/CMOS inputs and provides four LVPECL outputs
    • Available in 16-pin (3mm x 3mm) MLF® package
