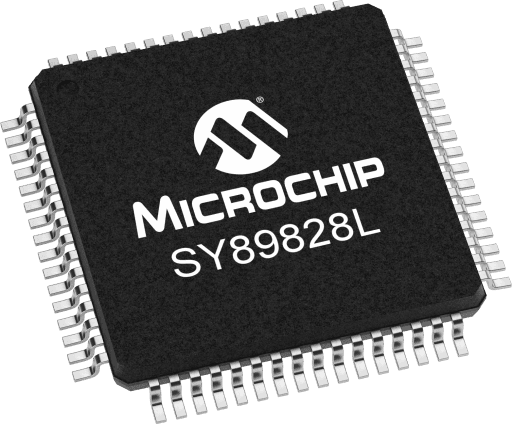

Microchip SY89828LHY

Manufacturer No:

SY89828LHY

Manufacturer:

Microchip

Package:

64-TQFP Exposed Pad

Description:

3.3V Dual 1:10 LVDS Fanout/Translator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89828LHY information

Microchip SY89828LHY technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89828LHY.

Type
Parameter

Description
Dual 1:10

Input
LVPECL/LVDS

Output
LVDS

Supply Voltage
3.3

Max Freq (GHz)
1

Icc (mA)
160

Max Within Device Skew (ps)
50

OE
True

Input Mux
True

Number Of Outputs
0

Buffer Type
Fanout

Fanout
Dual 1:10

Max Prop Delay (ps)
1300

Download datasheets and manufacturer documentation for Microchip SY89828LHY.

Data Sheets:

a560d96860a47fd7128bbc133ff9439b.pdf

User Guide:

97c24aaacb3a54ca5953b4425214d62d.pdf

The SY89828L is a precision fanout buffer with 20 differential LVDS (Low Voltage Differential Swing) output pairs. The part is designed for use in low voltage 3.3V applications that require a large number of outputs to drive precisely aligned, ultra low-skew signals to their destination.The input is multiplexed from either LVDS or LVPECL (Low Voltage Positive Emitter Coupled Logic) by the CLK_SEL1 and CLK_SEL2 pins. The Output Enables (OE1 and OE2) are synchronous so that the outputs will only be enabled/ disabled when they are already in the LOW state. This avoids any chance of generating a runt clock pulse when the device is enabled/disabled as can happen with an asynchronous control.The SY89828L features a low pin-to-pin skew of less than 50ps--performance previously unachievable in a standard product having such a high number of outputs.The SY89828L is available in a single space saving package, enabling a lower overall cost solution.

High-performance dual 1:10, 1GHz LVDS fanout buffer/translator
Two banks of 10 differential LVDS outputs
>1GHz fMAX
<50ps within device skew
<400ps tr/tf time
Each bank includes a 2:1 input mux
2:1 mux input accepts LVDS and LVPECL
<1psRMS cycle-to-cycle jitter
<1psPP total jitter
3.3V supply voltage
Output enable function
LVDS input includes internal 100O termination
Available in a 64-Pin EPAD-TQFP

User Guide
