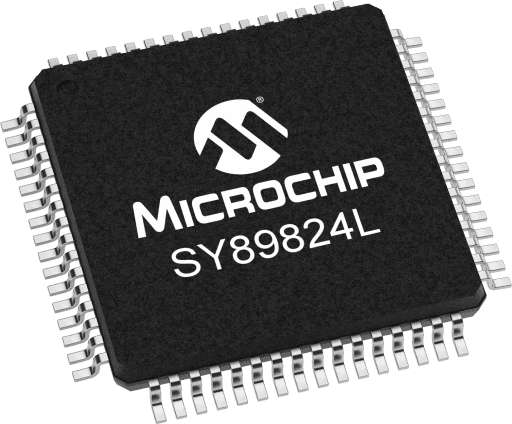

Microchip SY89824LHZ

Manufacturer No:

SY89824LHZ

Manufacturer:

Microchip

Package:

64-TQFP Exposed Pad

Description:

500MHz 1:22 Diff. HSTL Fanout Buffer

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89824LHZ information

Microchip SY89824LHZ technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89824LHZ.

Type
Parameter

Description
2:22

Input
LVPECL/HSTL

Output
HSTL

Supply Voltage
3.3

Max Freq (GHz)
0.5

Icc (mA)
115

Max Within Device Skew (ps)
50

OE
True

Input Mux
True

Number Of Outputs
0

Buffer Type
Fanout

Fanout
1:22

Max Prop Delay (ps)
1000

Download datasheets and manufacturer documentation for Microchip SY89824LHZ.

Data Sheets:

770625c57c8e02bb145ce3a84559b373.pdf

User Guide:

30a35809a8de7693aadf30d632a0adbc.pdf

The SY89824L is a High Performance Bus Clock Driver with 22 differential HSTL (High Speed Transceiver Logic) output pairs. The part is designed for use in low voltage (3.3V/1.8V) applications which require a large number of outputs to drive precisely aligned, ultra low skew signals to their destination. The input is multiplexed from either HSTL or LVPECL (Low Voltage Positive Emitter Coupled Logic) by the CLK_SEL pin. The Output Enable (OE) is synchronous so that the outputs will only be enabled/disabled when they are already in the LOW state. This avoids any chance of generating a runt clock pulse when the device is enabled/disabled as can happen with an asynchronous control.The SY89824L features low pin-to-pin skew (50ps max.) and low part-to-part skew (200ps max.)--performance previously unachievable in a standard product having such a high number of outputs. The SY89824L is available in a single space saving package, enabling a lower overall cost solution.

3.3V core supply, 1.8V output supply for reduced power
LVPECL and HSTL inputs
22 differential HSTL (low-voltage swing) output pairs
HSTL outputs drive 50O to ground with no offset voltage
Low part-to-part skew (200ps max.)
Low pin-to-pin skew (50ps max.)
Available in a 64-Pin EPAD-TQFP
