Microchip SY89823LHY

Manufacturer No:

SY89823LHY

Manufacturer:

Microchip

Package:

64-TQFP Exposed Pad

Description:

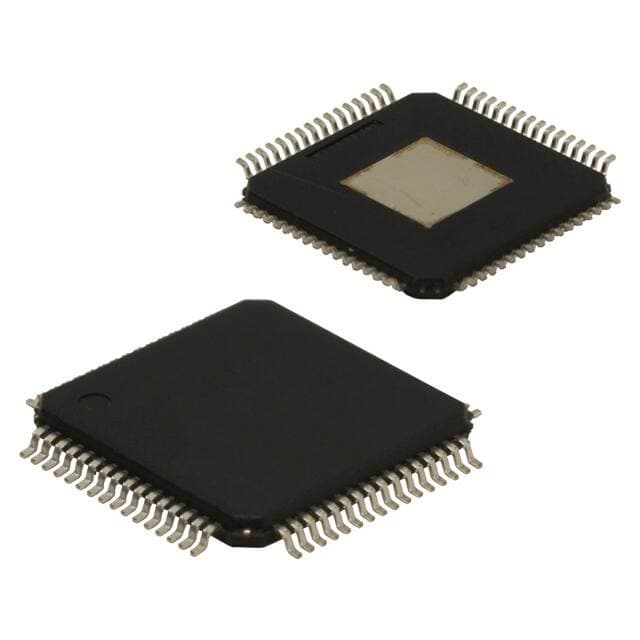

1 Circuit 500MHz 3.3V 2:22 Clock Buffer QUAD SY89823 Precision Edge® Series 64-TQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89823LHY information

Microchip SY89823LHY technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89823LHY.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
64-TQFP Exposed Pad

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
Precision Edge®

Published
2008

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
64

Type
Fanout Buffer (Distribution), Multiplexer, Translator

Terminal Finish
Matte Tin (Sn)

Voltage - Supply
3.15V~3.45V

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
SY89823

Output
HSTL

JESD-30 Code
S-PQFP-G64

Number of Circuits
1

Frequency (Max)
500MHz

Input
HSTL, LVPECL

Ratio - Input:Output
2:22

Differential - Input:Output
Yes/Yes

fmax-Min
500 MHz

Same Edge Skew-Max (tskwd)
0.05 ns

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microchip SY89823LHY.

SY89823LHY Overview

There is a case option of 64-TQFP Exposed Pad available for this clock divider. There is a Tray packaged with it. Normal operation is limited to 500MHz. 64 terminations have been recorded. With a supply voltage of 3.3V, high efficiency is possible. As far as I can tell, it is mounted by Surface Mount. Electronic parts classified as Fanout Buffer (Distribution), Multiplexer, Translator are considered to be safety components. It is recommended to set the temperature to -40°C~85°C so the system can perform reliably. In order for it to function, a power source of 3.15V~3.45V V must be available. Surface Mount is placed within the way of this object. As a result, the output is HSTL. This is a member of the family of SY89823. The maximum supply voltage (Vsup) has been set to 3.45V. It belongs to the Precision Edge® series of electronic parts.

SY89823LHY Features

64 terminations
The operating temperature of -40°C~85°C degrees

SY89823LHY Applications

There are a lot of Microchip Technology
SY89823LHY Clock Buffers & Drivers applications.

Clock signal duplication
Clock signal format conversion
Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
