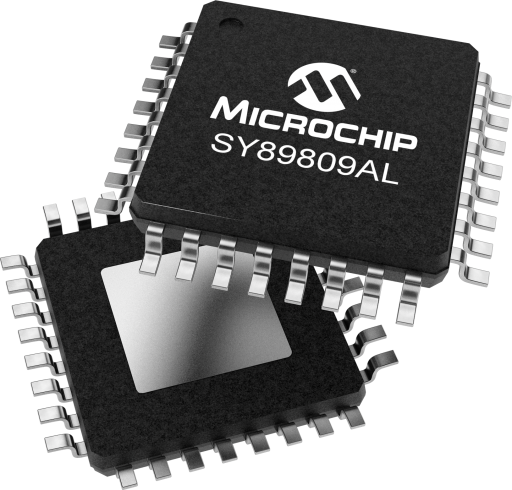

Microchip SY89809ALTZ

Manufacturer No:

SY89809ALTZ

Manufacturer:

Microchip

Package:

32-TQFP

Description:

500MHz 1:9 Diff. HSTL Fanout Buffer

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89809ALTZ information

Microchip SY89809ALTZ technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89809ALTZ.

Type
Parameter

Description
2:9

Input
LVPECL/HSTL

Output
HSTL

Supply Voltage
1.8/3.3

Max Freq (GHz)
0.75

Icc (mA)
65

Max Within Device Skew (ps)
15

OE
True

Input Mux
True

Number Of Outputs
0

Buffer Type
Fanout

Fanout
1:9

Max Prop Delay (ps)
1070

Download datasheets and manufacturer documentation for Microchip SY89809ALTZ.

Data Sheets:

0564ef098f0a08578e129005c780a4ce.pdf

The SY89809AL is a high-performance bus clock driver with nine differential High-Speed Transceiver Logic (HSTL) output pairs. The part is designed for use in low-voltage (3.3V/1.8V) applications, which require a large number of outputs to drive precisely aligned, ultra-low skew signals to their destination. The input is multiplexed from either HSTL or Low-Voltage Positive-Emitter-Coupled Logic (LVPECL) by the CLK_SEL pin. The Output Enable (OE) is synchronous so that the outputs will only be enabled/disabled when they are already in the LOW state.This avoids any chance of generating a runt clock pulse when the device is enabled/disabled as can happen with an asynchronous control.The SY89809AL features low pin-to-pin skew (15ps typical) and low part-to-part skew (100ps typical). The SY89809AL is available in a single space-saving package, enabling a lower overall cost solution.

3.3V core supply, 1.8V output supply for reduced power
LVPECL and HSTL inputs
Nine differential HSTL (low-voltage swing) output pairs
HSTL outputs drive 50O-to-ground with no offset voltage
750MHz maximum clock frequency
Low part-to-part skew (100ps typical)
Low pin-to-pin skew (15ps typical)
Available in 32-pin TQFP
