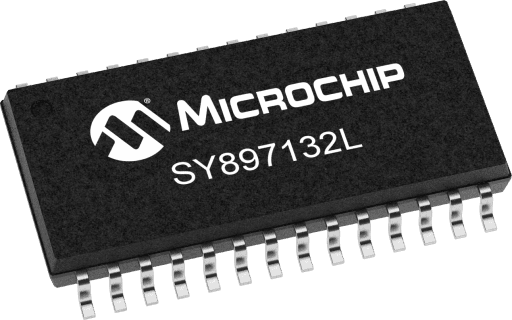

Microchip SY897132LKG

Manufacturer No:

SY897132LKG

Manufacturer:

Microchip

Package:

28-TSSOP (0.173, 4.40mm Width)

Description:

Link Replicator, 1:2 Fanout + 2:1 MUX, 2nd Sourced to ON\u0027s NB4N7132

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY897132LKG information

Microchip SY897132LKG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY897132LKG.

Type
Parameter

Description
Link Replicator

Input
LVPECL

Output
LVPECL

Supply Voltage
3.3

Max Freq (GHz)
0.8

Icc (mA)
105

OE
True

Input Mux
True

Number Of Outputs
0

Buffer Type
Link Replicator

Fanout
1:2

Max Prop Delay (ps)
4000

Download datasheets and manufacturer documentation for Microchip SY897132LKG.

Data Sheets:

23921d71e951f17eca84afa7ebc0a80c.pdf

The SY897132L is a Link Replicator which provides both serial loop replication as well as serial loopback control functions. It is high performance and works up to 1.5Gbps on 3.3V power supplies. The SY897132L is ideal for Fibre Channel, Gigabit Ethernet, HDTV, and SATA applications. Other applications include internal/external connection routing in Host Bus Adaptors as well as hot-pluggable links between switch cards.The IN input is sent to both OUT0 and OUT1, which are enabled when OE0 and OE1 are HIGH and disabled when they are LOW. When the outputs are disabled, both differential outputs go HIGH and the buffers are turned off to save power.MUX0 controls, whether IN or IN1, is sent to OUT0. Similarly, MUX1 controls, whether IN or IN0, is sent to OUT1. MUX selects whether IN0 or IN1 is sent to OUT.The SY897132L operates on 3.3V ±5% power supplies and is guaranteed over the full industrial temperature range (–40°C to +85°C). The SY897132L is part of Micrel’s high-speed, Precision Edge® product line.

Serial loop replication
No external components required
T11 Fibre Channel compliant at 1.0625Gbps
IEEE802.3z Gigabit Ethernet compliant at 1.25Gbps
SMPTE-292M compliant at 1.485Gbps
Operates with 3.3V ±5%
Industrial temperature range: –40°C to +85°C
Available in 28-pin TSSOP package
