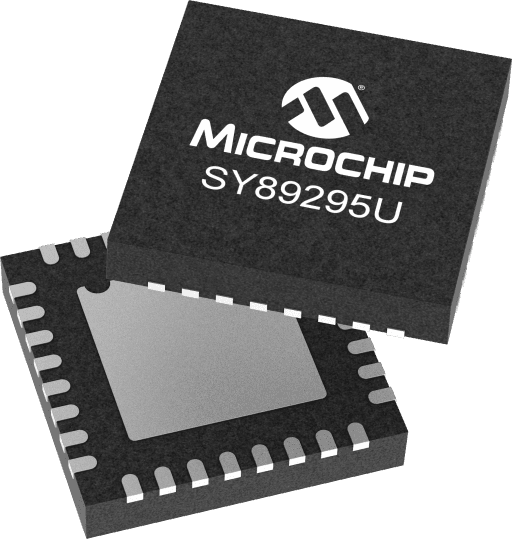

Microchip SY89295UMG

Manufacturer No:

SY89295UMG

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad, 32-MLF®

Description:

2.5V/3.3V PECL Delay Line

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89295UMG information

Microchip SY89295UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89295UMG.

Type
Parameter

Description
Programmable Delay.

Input
LVPECL/LVTTL

Output
LVPECL

Supply Voltage
2.5/3.3

Max Freq (GHz)
1.5

Icc (mA)
220

Max Within Device Skew (ps)
25

OE
False

Input Mux
False

Max Prop Delay (ps)
14.8

Download datasheets and manufacturer documentation for Microchip SY89295UMG.

User Guide:

2ecc96fac51539eb582ebdb3e67d2447.pdf

Data Sheets:

963edb843efa144a7bfd2a372661152f.pdf

The SY89295U is a programmable delay line that delays the input signal using a digital control signal. The delay can vary from 3.2ns to 14.8ns in 10ps increments. In addition, the input signal is LVPECL, uses either a 2.5V ±5% or 3.3V ±10% power supply, and is guaranteed over the full industrial temperature range (-40°C to +85°C).The delay varies in discrete steps based on a control word. The control word is 10-bits long and controls the delay in 10ps increments. The eleventh bit is D[10] and is used to simultaneously cascade the SY89295U which allows for a larger delay range. In addition, the input pins IN and /IN default to an equivalent low state when left floating. Further, for maximum flexibility, the control register interface accepts CMOS or TTL level signals.For applications that require an analog delay input, see the SY89296L which is a programmable delay chip with fine tune control. The SY89295U and SY89296U are part of Micrel's high-speed, Precision Edge® product line.

Precision LVPECL programmable delay line
>1.5GHz fMAX
<160ps rise/fall times
<10psPP total jitter
<2psRMS cycle-to-cycle jitter
<1psRMS random jitter
Programmable delay range: 3.2ns to 14.8ns in 10ps increments
Increased monotonicity over the MIC100EP195
±10ps INL
VBB output reference voltage
Parallel inputs accepts LVPECL or CMOS/LVTTL
Low voltage operation: 2.5V ±5% and 3.3V ±10%
Industrial -40°C to +85°C temperature range
Available in 32-pin (5mm x 5mm) MLF® and 32-pin TQFP packages
