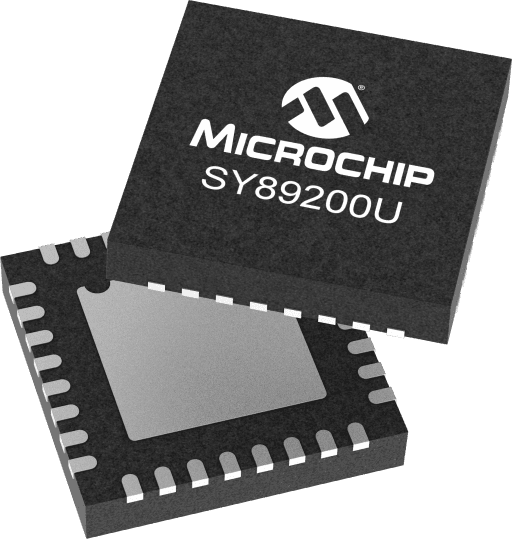

Microchip SY89200UMG

Manufacturer No:

SY89200UMG

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad, 32-MLF®

Description:

2.5V 1:8 LVDS fanout w/ Divide by 1, 2, 4 Dividers

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89200UMG information

Microchip SY89200UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89200UMG.

Type
Parameter

Description
1:8

Input
ANY

Output
LVDS

Supply Voltage
2.5

Max Freq (GHz)
1.5

Icc (mA)
350

Max Within Device Skew (ps)
25

OE
False

Input Mux
False

Number Of Outputs
0

Max Prop Delay (ps)
900

Download datasheets and manufacturer documentation for Microchip SY89200UMG.

Data Sheets:

b2ba2b6736592d6c42d6b1feff11a017.pdf

User Guide:

31bb6f8ec3edfe6455b300e3621bad10.pdf

The SY89200U is a 2.5V precision, high-speed, integrated clock divider and LVDS fanout buffer capable of handling clocks up to 1.5GHz. Optimized for communications applications, the three independently controlled output banks are phase matched and can be configured for pass through (÷1), ÷2 or ÷4 divider ratios.The differential input includes Micrel's unique, 3-pin input termination architecture that allows the user to interface to any differential signal path. The low-skew, low-jitter outputs are LVDS-compatible with extremely fast rise/fall times guaranteed to be less than 150ps.The EN (enable) input guarantees that the ÷1, ÷2 and ÷4 outputs will start from the same state without any runt pulse after an asynchronous master rest (MR) is asserted. This is accomplished by enabling the outputs after a four-clock delay to allow the counters to synchronize.The SY89200U is part of Micrel's Precision Edge® product family.

Three low-skew LVDS output banks with programmable ÷1, ÷2 and ÷4 divider options
Three independently programmable output banks
Accepts a clock frequency up to 1.5GHz
<900ps IN-to-OUT propagation delay
<150ps rise/fall time
<50ps bank-to-bank phase offset
Ultra-low jitter design:
<1psRMS random jitter
<10psPP total jitter (clock)
Patent-pending input termination and VT pin accepts DC- and AC-coupled inputs (CML, PECL, LVDS)
LVDS-compatible outputs
CMOS/TTL-compatible output enable (EN) and divider select control
2.5V ±5% power supply
-40°C to +85°C temperature range
Available in 32-pin (5mm x 5mm) QFN package
