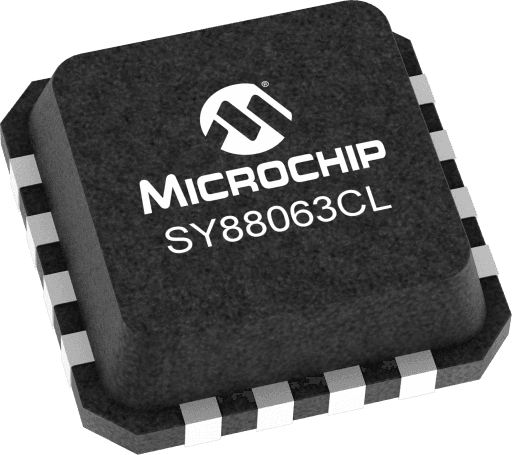

Microchip SY88063CLMG-TR
Manufacturer No:
SY88063CLMG-TR
Manufacturer:
Package:
16-VFQFN Exposed Pad
Description:
1G - 12.5G Limiting Post Amplifier w/Digital Offset Correction
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
SY88063CLMG-TR Information
Microchip SY88063CLMG-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip SY88063CLMG-TR.
- Type
- Parameter
- Part Type
- Burst Mode, Continuous Mode
- Power Supply (V)
- 3.3
- Type
- Parameter
Download datasheets and manufacturer documentation for Microchip SY88063CLMG-TR.
User Guide:
Data Sheets:
The SY88063CL limiting post amplifier is designed for use in fiber-optic receivers for multi-rate applications from 1.0625Gbps to 12.5Gbps.
The SY88063CL contains a high-bandwidth, high-sensitivity input stage with user-programmable, wide-range SD assert/LOS de-assert threshold levels, which enables optimized system reach. Typically, 4dB of electrical hysteresis is provided to minimize LOS or SD chattering caused by noisy input signals. A logic level control pin is provided to enable user selection of an open-collector, TTL-compatible LOS or SD status indication signal with an external 5kΩ to 10kΩ pull-up resistor.
The SY88063CL provides fast SD assert and LOS de-assert times over the entire differential input voltage range of 5mVPP to 1800mVPP.
The SY88063CL input stage also provides a user-selectable digital offset correction (DOC) function to automatically compensate for internal device offsets in the high-speed data path.
The SY88063CL provides integrated 50Ω input and output impedances to optimize the high-speed signal paths and reduce component count. A TTL-compatible JAM input is provided to enable a SQUELCH function by feeding back the LOS or SD signal. The JAM input disables only the post amplifier output.
The SY88063CL operates from a single +3.3V power supply, over temperatures ranging from –40°C to +85°C.
To request the datasheet, please email us at tcg_help@microchip.com- Multi-rate operation from 1.0625Gbps to 12.5Gbps
- Selectable digital offset correction for internal offset compensation in the high-speed data path
- Wide differential input range (5mVPP to 1800mVPP)
- 3mVPP to 30mVPP
- 4dB typical electrical hysteresis
- 75ns typical; 120ns maximum
- Selectable LOS or SD status signal indicator
- TTL-compatible JAM input with internal pull-up
- Low-noise CML data inputs with integrated 50Ω termination impedance to internal reference VREF
- 25ps typical rise/fall times
- Wide range power supply: 3.3V ±10%
- Industrial temperature range: -40°C to +85°C
- Available in a tiny 3mm x 3mm QFN package
