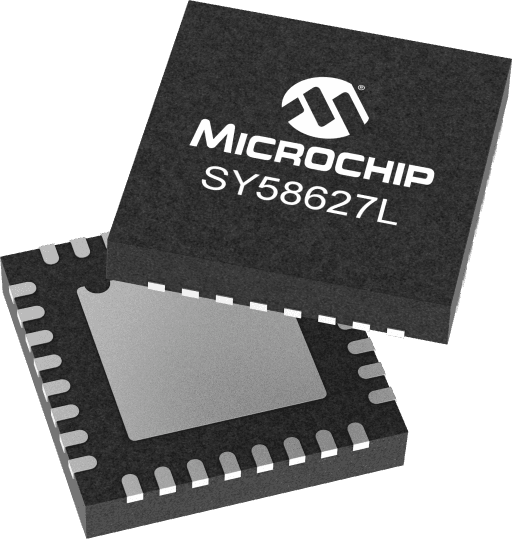

Microchip SY58627LMG

Manufacturer No:

SY58627LMG

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

6.4Gbps Receiver w/ Equalization

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58627LMG information

Microchip SY58627LMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58627LMG.

Type
Parameter

Input
Any

Supply Voltage
3.3

Max Freq (GHz)
2.5

Icc (mA)
65

Max Within Device Skew (ps)
20

OE
False

Input Mux
False

Number Of Outputs
0

Max Prop Delay (ps)
410

Download datasheets and manufacturer documentation for Microchip SY58627LMG.

Data Sheets:

9215b11c539e065a76fd3ed2623876fe.pdf

User Guide:

51d636f1e69f41d8d1db3b32119c90ef.pdf

The SY58627L high-speed, low jitter receive buffer is optimized for backplane and transmission line data-path management applications. The SY58627L is capable of receiving serial data up to 6.4Gbps across up to 36 inches of FR4.The SY58627L differential input includes Micrel's unique, 3-pin input termination architecture that directly interfaces to any differential signal as small as 100mVpk (AC- or DC-coupled) without any termination resistor networks in the signal path. The outputs are 50Ω source-terminated CML optimized to drive 400mVpk into 50Ω (100Ω load across the output pair). The I/O termination is connected to a dedicated VTT pin for added bias flexibility.The SY58627L receiver input provides four levels of equalization to compensate for degraded signals resulting from transmission losses. The equalization is programmed with a three-bit interface.The SY58627L operates at 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY58627L is part of Micrel's high-speed, Precision Edge® product line.

Selectable equalizing network to optimize incoming data eye pattern
Four selectable equalization levels
Receives up to 36" FR4 PCB trace, or longer combinations of FR4+cable+interconnect
DC through 6.4Gbps data rate throughput
Integrated loopback capability
Patented, Internal termination to VTTIN pin interfaces to any differential AC- or DC-coupled signals
50O source terminated CML outputs minimize round-trip reflections
Wide input voltage range: 100mV to 1.3VPK
Output disable
DC-offset control with VTT I/O
Hysteresis included
3.3V ±10% supply voltage
-40°C to +85°C temperature range
Available in 32-pin (5mm x 5mm) QFN package
