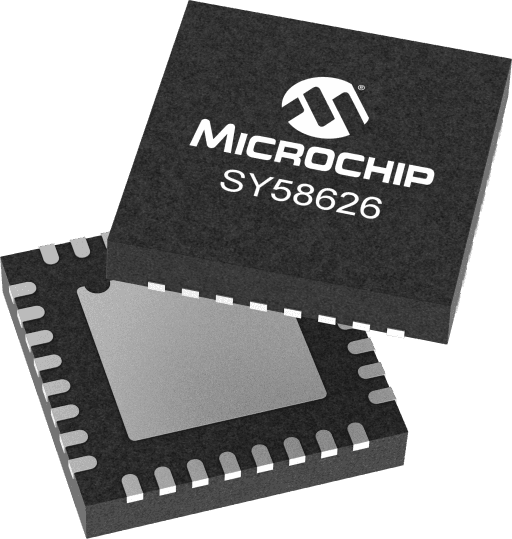

Microchip SY58626LMH

Manufacturer No:

SY58626LMH

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

6.4Gbps Transmitter w/ Pre-emphasis

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58626LMH information

Microchip SY58626LMH technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58626LMH.

Type
Parameter

Input
Any

Supply Voltage
3.3

Max Freq (GHz)
2.5

Icc (mA)
65

Max Within Device Skew (ps)
20

OE
False

Input Mux
False

Number Of Outputs
0

Max Prop Delay (ps)
360

Download datasheets and manufacturer documentation for Microchip SY58626LMH.

Data Sheets:

679c4f5009fbbd16ab9f0094bbfa6b8a.pdf

The SY58626L high-speed, low jitter transmit buffer is optimized for backplane and transmission line data-path management applications in Automatic Test Equipment (ATE) and Test & Measurement (T&M) systems. The buffer includes a CML compatible, variable swing output with selectable pre-emphasis. The SY58626L is capable of driving serial data from DC through 6.4Gbps with a 3VPP (1.5VPK single ended) differential swing.The SY58626L differential input includes Micrel's unique, 3-pin input termination architecture that directly interfaces to any DC- or AC-coupled, differential signal as small as 100mVPK without any termination resistor networks in the signal path. The outputs are 50Ω source-terminated CML with a programmable output swing from 200mVPP to 3VPP(100mVPK to 1.5VPK).The SY58626L includes an output stage that provides 4 levels of pre-emphasis. The output pre-emphasis level is programmed with a three-bit interface. Unlike other transmitter solutions, the output pre-emphasis duration can be programmed from 60ps to 400ps.The SY58626L operates at 3.3V ±10% supply and is guaranteed over the commercial temperature range of 0°C to +70°C. The SY58626L transmitter is optimized to work with the SY58627L receiver. The SY58626L is part of Micrel's high-speed, Precision Edge® product line.

Transmit driver provides output pre-emphasis to extend transmission range
4 selectable pre-emphasis levels
Drives 6.4Gbps up to 12" FR4 PCB trace, or longer combinations of FR4+cable+interconnect
DC through 6.4Gbps data rate throughput
Integrated loopback capability
Programmable pre-emphasis magnitude
Programmable pre-emphasis duration
Internal termination to VTTIN pin interfaces to any differential AC- or DC-coupled signals
50O source terminated CML outputs minimize round-trip reflections
Programmable output swing control: 200mV-3.0VPP
Output Disable and output shutdown
DC-offset control with VTTI/O
3.3V ±10% supply voltage
0°C to +70°C temperature range
Available in 32-pin (5mm x 5mm) QFN package
