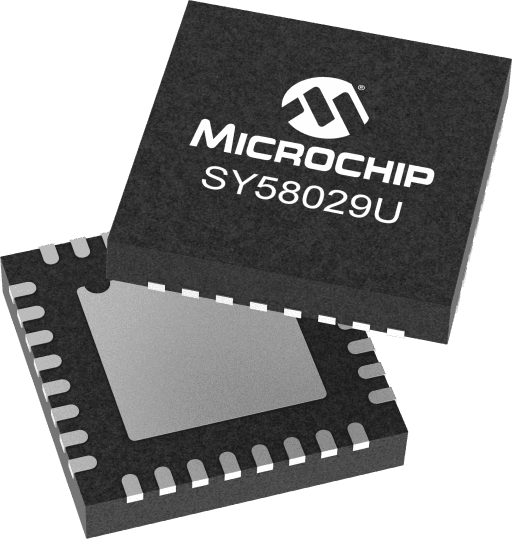

Microchip SY58029UMG

Manufacturer No:

SY58029UMG

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad, 32-MLF®

Description:

5Gbps 4:1 800mV LVPECL Multiplexer w/ 1:2 Fanout

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58029UMG information

Microchip SY58029UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58029UMG.

Type
Parameter

Description
4:02

Input
ANY

Output
LVPECL

Supply Voltage
2.5/3.3V

Max Freq (GHz)
4

Icc (mA)
110

Max Within Device Skew (ps)
15

OE
False

Input Mux
False

Max Prop Delay (ps)
390

Download datasheets and manufacturer documentation for Microchip SY58029UMG.

Data Sheets:

d9ef1164071fd69015cf8145be26aa8d.pdf

User Guide:

18d087560cada736aba754f16deb374a.pdf

The SY58029U is a 2.5V/3.3V precision, high-speed, 4:1 differential multiplexer with 100k LVPECL (800mV) compatible outputs, capable of handling clocks up to 4GHz and data streams up to 5Gbps. In addition, a 1:2 fanout buffer provides two copies of the selected inputs.The differential input includes Micrel's unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-coupled) as small as 100mV without any level shifting or termination resistor networks in the signal path. The result is a clean, stub-free, low-jitter interface solution. The outputs are 800mV LVPECL, (100k temperature compensated) with extremely fast rise/ fall times guaranteed to be less than 110ps.The SY58029U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. For applications that require CML outputs, consider the SY58028U. For 400mV LVPECL outputs, consider the SY58030U. The SY58029U is part of Micrel's high-speed, Precision Edge®product line.

Selects 1 of 4 differential inputs
Provides two copies of the selected input
DC-to- >5Gbps data rate throughput
<390ps IN-to-Out tpd
<110ps tr/ tf times
<10psPP total jitter (clock)
<1psRMS random jitter
<10psPP deterministic jitter
<0.7psRMS crosstalk-induced jitter
Unique patended input design minimizes crosstalk
Accepts an input signal as low as 100mV
Unique patented input termination and VT pin accepts DC- and AC-coupled inputs (CML, LVPECL, LVDS)
800mV 100K LVPECL output swing
Power supply 2.5V ±5% or 3.3V ±10%
-40°C to +85°C temperature range
Available in 32-pin (5mm x 5mm) MLF® package
