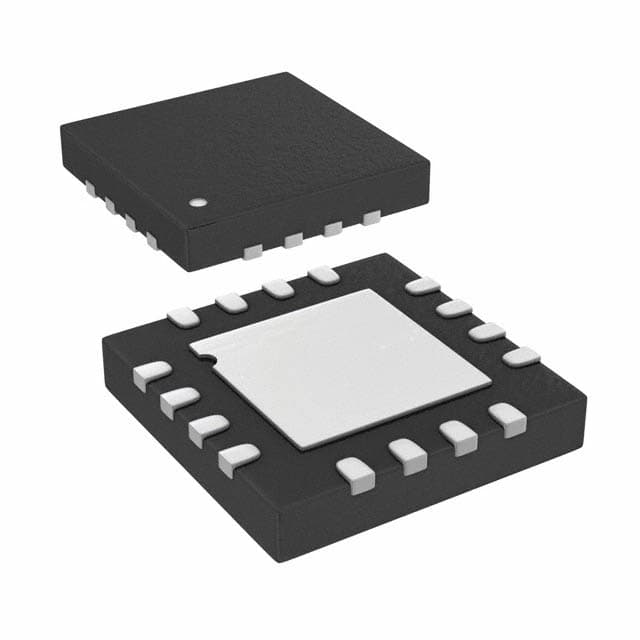

Microchip SY58017UMG

Manufacturer No:

SY58017UMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

Ultra High Speed 2:1 CML Multiplexer

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58017UMG information

Microchip SY58017UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58017UMG.

Type
Parameter

Description
2:01

Input
ANY

Output
CML

Supply Voltage
2.5/3.3V

Max Freq (GHz)
7

Icc (mA)
55

Max Within Device Skew (ps)
15

OE
False

Input Mux
False

Max Prop Delay (ps)
240

Download datasheets and manufacturer documentation for Microchip SY58017UMG.

User Guide:

861a5c020a45f943d8f289862edba545.pdf

Data Sheets:

9a4e7a8d5c72f406892f2a431013694c.pdf

The SY58017U is a 2.5V/3.3V precision, high-speed, 2:1 differential MUX capable of handling clocks up to 7GHz and data up to 10.7Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-coupled) as small as 100mV without any level shifting or termination resistor networks in the signal path. The outputs are 50Ω source terminated CML, with extremely fast rise/fall times guaranteed to be less than 60ps.The SY58017U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. For applications that require LVPECL outputs, consider the SY58018U or SY58019U Multiplexers with LVPECL outputs. The SY58017U is part of Micrel's high-speed, Precision Edge®product line.

DC to >10.7Gbps data throughput
DC to >7GHz fMAX (clock)
<240ps propagation delay
<60ps tr/ tf times
Ultra-low crosstalk-induced jitter: <0.7psRMS
<1psRMS random jitter
<10psPP deterministic jitter
<10psPP total jitter (clock)
Unique input termination and VTpin accepts DCcoupled and AC-coupled inputs (CML, PECL, LVDS)
Internal 50O output source termination
Typical 400mV CML output swing (RL = 50O)
Power supply 2.5V ±5% or 3.3V ±10%
-40°C to +85°C temperature range
Available in 16-pin (3mm x 3mm) MLF® package
