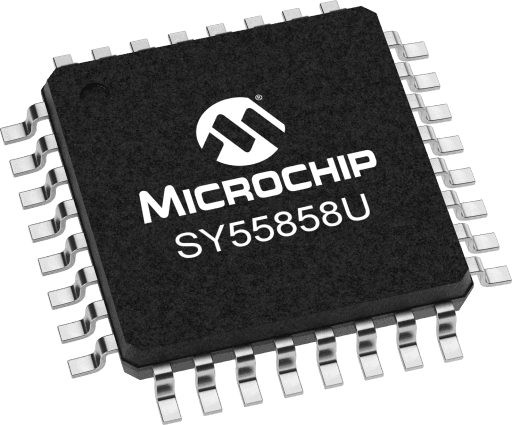

Microchip SY55858UHG
Microchip SY55858UHG

Microchip SY55858UHG

Manufacturer No:

SY55858UHG

Manufacturer:

Microchip

Package:

32-TQFP Exposed Pad

Description:

Precision 3Gbps 2x2 CML Crosspoint Switch

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

SY55858UHG Information

Microchip SY55858UHG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY55858UHG.

  • Type
  • Parameter
  • Description
  • Dual 2x2 Crosspoint Switch 3 Gbps
  • Input
  • CML/PECL/LVPECL
  • Output
  • CML
  • Supply Voltage
  • 2.5/3.3
  • Icc (mA)
  • 150
  • Max Within Device Skew (ps)
  • 25
  • OE
  • False
  • Input Mux
  • True
  • Max Prop Delay (ps)
  • 450
  • Type
  • Parameter

Download datasheets and manufacturer documentation for Microchip SY55858UHG.

Data Sheets:

User Guide:

The SY55858U is a low-voltage, high-speed dual 2 x 2 crosspoint switch with a flexible input that accepts CML or PECL, and a 50Ω compatible differential CML (currentmode logic) output. The non-blocking design allows any input to connect to any output. Varying the state of the select inputs allows SY55858U to be used in backup, fault tolerant, protection and backplane distribution applications.The signal inputs (DA0-1 and DB0-1) have a unique internal termination design that allows access to the termination network through VT pins. This feature allows the device to easily interface to other logic standards such as AC-coupled or DC-coupled PECL/LVPECL signals. For applications that require a single-channel 2x2 crosspoint, consider the SY55854.

    • fMAX >3.0GHz (3Gbps)
    • tr/ tf <120ps
    • Within-device skew <25ps
    • Non-blocking "switch architecture"
    • Configurable as dual 2:1 mux, dual 1:2 fanout buffer, 1:4 fanout buffer, quad buffer, or dual 2x2 switch
    • 50O compatible outputs
    • Unique input termination and VT pin for DC-coupled and AC-coupled input signals-CML or PECL
    • Fully differential inputs/outputs
    • TTL/CMOS compatible control logic
    • Wide supply voltage range: 2.3V to 3.6V
    • Wide operating temperature range: -40°C to +85°C
    • Available in 32-pin EPAD-TQFP package
