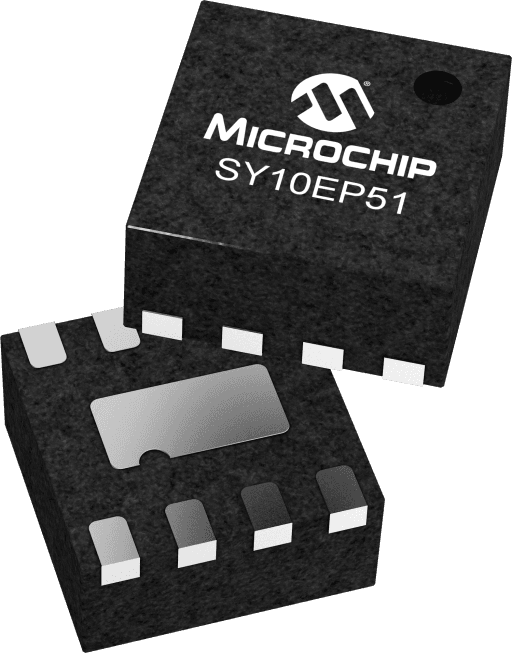

Microchip SY10EP51VKG

Manufacturer No:

SY10EP51VKG

Manufacturer:

Microchip

Package:

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Description:

3.3V/5V Data and Differential Clock D Flip Flop with Reset

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY10EP51VKG information

Microchip SY10EP51VKG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY10EP51VKG.

Type
Parameter

Download datasheets and manufacturer documentation for Microchip SY10EP51VKG.

Application Notes:

28e47621c3774d8713e580970ed13782.pdf

Data Sheets:

3d25ee938762b5886339c652130fef56.pdf

The SY10EP51V is a D flip-flop with reset and differential clock. The device is pin and functionally equivalent to the EL51 device.The reset input is an asynchronous, level triggered signal. Data enters the master portion of the flip-flop when CLK is LOW and is transferred to the slave, and thus the outputs, upon a positive transition of the CLK. The differential clock inputs of the EP51V allow the device to be used as a negative edge triggered flip-flop.The differential input employs clamp circuitry to maintain stability under open input conditions. When left open, the CLK input will be pulled down to VEE and the /CLK input will be biased a VCC/2.

3.3V and 5V power supply options
320ps typical propagation delay
Maximum frequency >3GHz typical
75O internal input pulldown resistors
Transistor count: 143
Available in 8-Pin (3mm x 3mm) MSOP, SOIC and MLF®(2mm x 2mm) packages

User Guide
