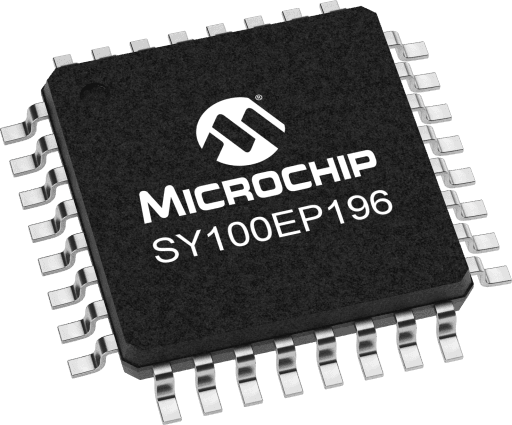

Microchip SY100EP196VTG
Microchip SY100EP196VTG

Microchip SY100EP196VTG

Manufacturer No:

SY100EP196VTG

Manufacturer:

Microchip

Package:

32-TQFP

Description:

3.3V/5V 2.5 GHz Programmable Delay Line w/Fine Tune

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY100EP196VTG information

Microchip SY100EP196VTG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY100EP196VTG.

  • Type
  • Parameter
  • Description
  • Programmable Delay with Fine Tune Control
  • Input
  • ANY
  • Output
  • ECL
  • Max Freq (GHz)
  • 2.5
  • Icc (mA)
  • 150
  • Max Within Device Skew (ps)
  • 25
  • OE
  • False
  • Input Mux
  • False

Download datasheets and manufacturer documentation for Microchip SY100EP196VTG.

Application Notes:

Data Sheets:

The SY100EP196V is a programmable delay line, varying the time a logic signal takes to traverse from IN to Q. This delay can vary from about 2.2ns to about 12.2ns. The input can be PECL, LVPECL, NECL, or LVNECL.The delay varies in discrete steps based on a control word presented to SY100EP196V. The 10-bit width of this latched control register allows for delay increments of approximately 10ps. In addition, delay may be varied continuously in about a 30ps range by setting the voltage at the FTUNE pin.An eleventh control bit allows the cascading of multiple SY100EP196V devices, for a wider delay range. Each additional SY100EP196V effectively doubles the delay range available.For maximum flexibility, the control register interface accepts CMOS or TTL level signals, as well as the input level at the IN± pins.



    • Pin-for-pin, plug-in compatible to the ON Semiconductor MC100EP196
    • Maximum frequency >2.5GHz
    • Programmable range: 2.2ns to 12.2ns
    • 10ps increments
    • PECL mode operating range: VCC = 3.0V to 5.5V with VEE = 0V
    • NECL mode operating range: VCC = 0V with VEE = –3.0V to –5.5V
    • Open input default state
    • Safety clamp on inputs
    • A logic high on the /EN pin will force Q to logic low
    • D[0:10] can accept either ECL, CMOS, or TTL inputs
    • VBB output reference voltage
    • Available in a 32-pin TQFP package
