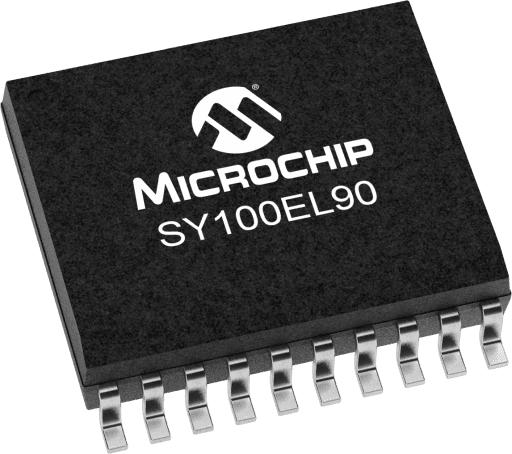

Microchip SY100EL90VZG

Manufacturer No:

SY100EL90VZG

Manufacturer:

Microchip

Package:

20-SOIC (0.295, 7.50mm Width)

Description:

5V/3.3V Triple ECL/LVECL-to-PECL/LVPECL Translator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY100EL90VZG information

Microchip SY100EL90VZG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY100EL90VZG.

Type
Parameter

Input
ECL/LVECL

Output
PECL/LVPECL

Supply Voltage
3.3/5

Max Freq (GHz)
0.5

Icc (mA)
24

Max Within Device Skew (ps)
100

OE
False

Input Mux
False

Max Prop Delay (ps)
670

Download datasheets and manufacturer documentation for Microchip SY100EL90VZG.

Application Notes:

28e47621c3774d8713e580970ed13782.pdf

Data Sheets:

cab6de1ef65c0b28dfffe5f52c3385ed.pdf

The SY100EL90V is a triple ECL/LVECL-to-PECL/LVPECL translator. The device can translate over all combinations of supply voltages: -5V ECL to 5V PECL, -5V ECL to 3.3V LVPECL, -3.3V LVECL to 5V PECL or -3.3V LVECL to 3.3V LVPECL.A V_BB output is provided for interfacing with single ended ECL signals at the input. If a single ended input is to be used, the VBB output should be connected to the D input. The active signal would then drive the D input. When used, the VBBoutput should be bypassed to via a 0.01µF capacitor. The V_BB output is designed to act as the switching reference for the EL90V under single ended input switching conditions. As a result this pin can only source/sink up to 0.5mA of current.

To accomplish the level translation the EL90V requires three power rails. The VCC supply should be connected to the positive supply, and the V_EE pin should be connected to the negative power supply. The GND pins as expected are connected to the system ground plane. Both V_EE and V_CC should be bypassed to ground via 0.01µF capacitors.Under open input conditions, the D input will be biased at VCC/2 and the D input will be pulled to V_EE. This condition will force the Q output to a LOW, ensuring stability.

3.3V and 5V power supply options
500ps propagation delay
Fully differential design
Supports both standard and low voltage operation
Available in 20-pin SOIC package
