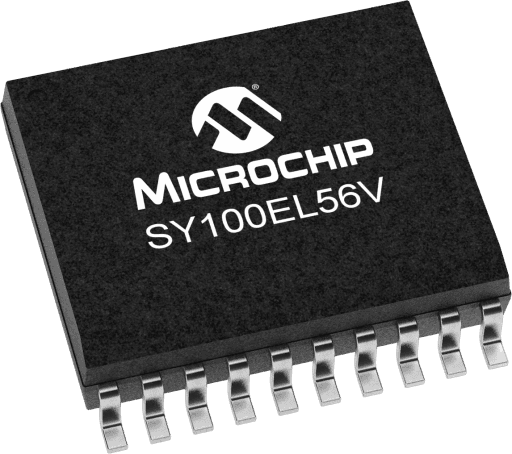

Microchip SY100EL56VZG

Manufacturer No:

SY100EL56VZG

Manufacturer:

Microchip

Package:

20-SOIC (0.295, 7.50mm Width)

Description:

3.3V/5V Dual Differential 2:1 Multiplexer

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY100EL56VZG information

Microchip SY100EL56VZG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY100EL56VZG.

Type
Parameter

Description
Dual 2:1

Input
ECL

Output
ECL

Supply Voltage
3.3/5V

Max Freq (GHz)
0

Icc (mA)
0

Max Within Device Skew (ps)
80

OE
False

Input Mux
True

Max Prop Delay (ps)
740

Download datasheets and manufacturer documentation for Microchip SY100EL56VZG.

Application Notes:

28e47621c3774d8713e580970ed13782.pdf

Data Sheets:

18e53b0e3454a5b68580bc9323d036ea.pdf

The SY100EL56V is a dual, fully differential 2:1 multiplexer. The differential data path makes the device ideal for multiplexing low skew clock or other skew sensitive signals. Multiple VBB pins are provided to ease AC coupling input signals.The device features both individual and common select inputs to address both data path and random logic applications.The differential inputs have special circuitry which ensures device stability under open input conditions. When both differential inputs are left open the D input will pull down to VEE, the D input will bias around VCC/2 forcing the Q output LOW.

3.3 and 5V power supply options
440ps propagation delay
Separate and common select
High bandwidth output transitions
Internal 75KO input pull-down resistors
Available in 20-pin SOIC package
