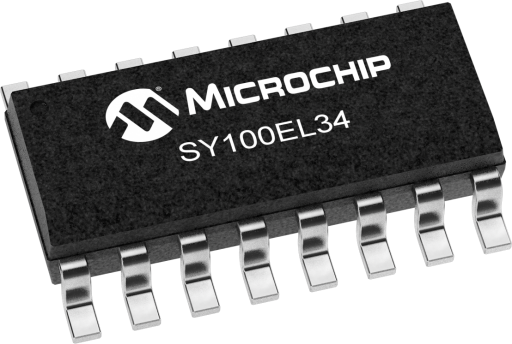

Microchip SY100EL34LZG

Manufacturer No:

SY100EL34LZG

Manufacturer:

Microchip

Package:

16-SOIC (0.154, 3.90mm Width)

Description:

3.3V /2, /4, /8 Clock Generation Chip

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY100EL34LZG information

Microchip SY100EL34LZG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY100EL34LZG.

Type
Parameter

Description
÷2, ÷4, ÷8 clock generation

Input
ECL/PECL

Supply Voltage
5

Max Freq (GHz)
0

Icc (mA)
0

Max Within Device Skew (ps)
50

OE
False

Input Mux
False

Number Of Outputs
0

Max Prop Delay (ps)
1200

Download datasheets and manufacturer documentation for Microchip SY100EL34LZG.

Application Notes:

28e47621c3774d8713e580970ed13782.pdf

Data Sheets:

17a01aaf732423f8c3fa306fed1d6b0d.pdf

The SY10/100EL34/L are low skew ÷2, ÷4, ÷8 clock generation chips designed explicitly for low skew clock generation applications. The internal dividers are synchronous to each other, therefore, the common output edges are all precisely aligned. The devices can be driven by either a differential or single-ended ECL or, if positive power supplies are used, PECL input signal. In addition, by using the VBB output, a sinusoidal source can be ACcoupled into the device. If a single-ended input is to be used, the VBB output should be connected to the CLK input and bypassed to ground via a 0.01µF capacitor.

The V_BB output is designed to act as the switching reference for the input of the EL34/L under single-ended input conditions. As a result, this pin can only source/ sink up to 0.5mA of current.The common enable (EN) is synchronous so that the internal dividers will only be enabled/disabled when the internal clock is already in the LOW state. This avoids any chance of generating a runt clock pulse on the internal clock when the device is enabled/disabled as can happen with an asynchronous control. An internal runt pulse could lead to losing synchronization between the internal divider stages. The internal enable flip-flop is clocked on the falling edge of the divider stages. The internal enable flip-flop is clocked on the falling edge of the input clock, therefore, all associated specification limits are referenced to the negative edge of the clock input.Upon start-up, the internal flip-flops will attain a random state; the master reset (MR) input allows for the synchronization of the internal dividers, as well as for multiple EL34/Ls in a system.

3.3V and 5V power supply options
50ps output-to-output skew
Synchronous enable/disable
Master Reset for synchronization
Internal 75KO input pull-down resistors
Available in 16-pin SOIC package
