Microchip SY100E222LTY
Microchip SY100E222LTY

Microchip SY100E222LTY

Manufacturer No:

SY100E222LTY

Manufacturer:

Microchip

Package:

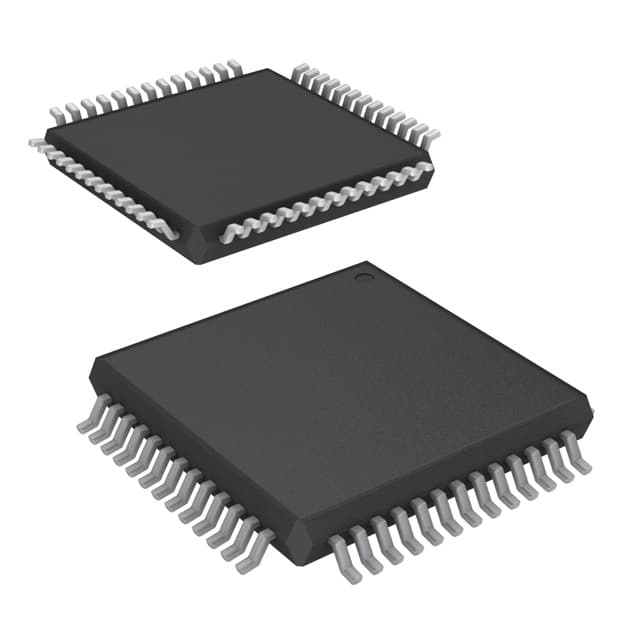

52-LQFP

Description:

1:15 LVPECL Fanout w/ divide-by 1, 2 Dividers

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY100E222LTY information

Microchip SY100E222LTY technical specifications, attributes, parameters and parts with similar specifications to Microchip SY100E222LTY.

  • Type
  • Parameter
  • Description
  • 1:15
  • Input
  • LVECL/LVPECL
  • Output
  • LVPECL
  • Supply Voltage
  • 3.3
  • Max Freq (GHz)
  • 1.5
  • Icc (mA)
  • 122
  • Max Within Device Skew (ps)
  • 50
  • OE
  • False
  • Input Mux
  • False
  • Number Of Outputs
  • 0
  • Buffer Type
  • Fanout
  • Fanout
  • 1:15
  • Max Prop Delay (ps)
  • 1520

Download datasheets and manufacturer documentation for Microchip SY100E222LTY.

Data Sheets:

Application Notes:

The SY100E222L is a low-skew, low-jitter device capable of receiving a high-speed LVECL/LVPECL input in either a single-ended or differential configuration. For single-ended configurations, a VBB output reference is supplied by the SY100E222L. A 2:1 input multiplexer selects from two differential input pairs by means of the CLK_SEL input select.The internal programmable divider for each of the four banks generates a ÷1 or ÷2 frequency of the selected input. The ÷1/÷2 divider outputs can be asynchronously synchronized with the master reset (MR) input so that the outputs will start out in a known state.The 15 total outputs are partitioned into four independently selected output banks in a 2/3/4/6 fanout configuration. Each of the four banks can independently select the ÷1 or ÷2 output frequency by means of the four separate frequency select pins (FSELA-FSELD) inputs.The SY100E222L is pin-for-pin compatible with the MC100LVE222FA device.The SY100E222L is part of a Micrel’s Precision Edge® product family. For other integrated clock divider plus fanout buffer options, consider Micrel’s SY89200 family.

    • Four programmable output banks and 15 total LVPECL-compatible differential outputs
    • Pin-compatible, plug-in replacement to MC100LVE222FA
    • fMAX clock = 1.5GHz
    • 50ps output-to-output skew
    • Four output banks with independent ÷1, ÷2 frequency control
    • 100k compatible I/O
    • Power supply 3.3V ±10%
    • –40°C to +85°C temperature range
    • Available in 52-pin LQFP package
