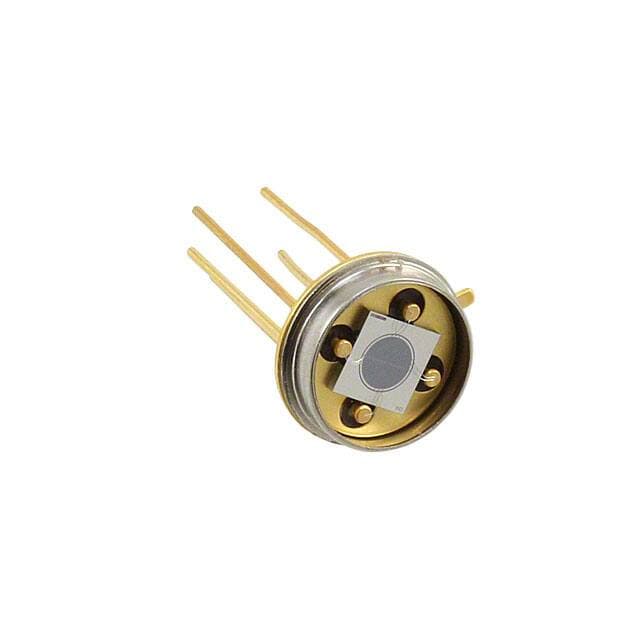

Opto Diode Corp SXUVPS4C

Manufacturer No:

SXUVPS4C

Manufacturer:

Opto Diode Corp

Package:

TO-5-3

Description:

Through Hole -10°C~40°C Box TO-5-3 20V 1.25mm2 (x4) 1?s 1nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SXUVPS4C information

Opto Diode Corp SXUVPS4C technical specifications, attributes, parameters and parts with similar specifications to Opto Diode Corp SXUVPS4C.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Through Hole

Package / Case
TO-5-3

Operating Temperature
-10°C~40°C

Packaging
Box

Series
SXUV

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
40°C

Min Operating Temperature
-10°C

Response Time
1?s

Voltage - DC Reverse (Vr) (Max)
20V

Max Reverse Voltage (DC)
20V

Dark Current
1nA

Active Area
1.25mm2 (x4)

Current - Dark (Typ)
1nA

Responsivity @ nm
0.02 A/W @ 254nm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Opto Diode Corp SXUVPS4C.

SXUVPS4C Overview

In order to protect the photodiodes against damage, they are packaged in the Box. To ensure safety, photodiodes are put into TO-5-3 packages. It is possible for the photodiodes to withstand 20V voltage in reverse-bias mode on a continuous basis. During reverse-bias operation, the photodiodes should never exceed 20V. It is recommended that photodiodes are operated at a temperature no higher than 40°C. However, the photodiodes should be operated at a minimum temperature of -10°C. It is possible for a photodiode to operate at 1nA current even if no light is provided.

SXUVPS4C Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -10°C~40°C
Packaging: Box
Response Time: 1?s
Responsivity @ nm: 0.02 A/W @ 254nm

SXUVPS4C Applications

There are a lot of Opto Diode Corp
SXUVPS4C Photodiodes applications.

Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
