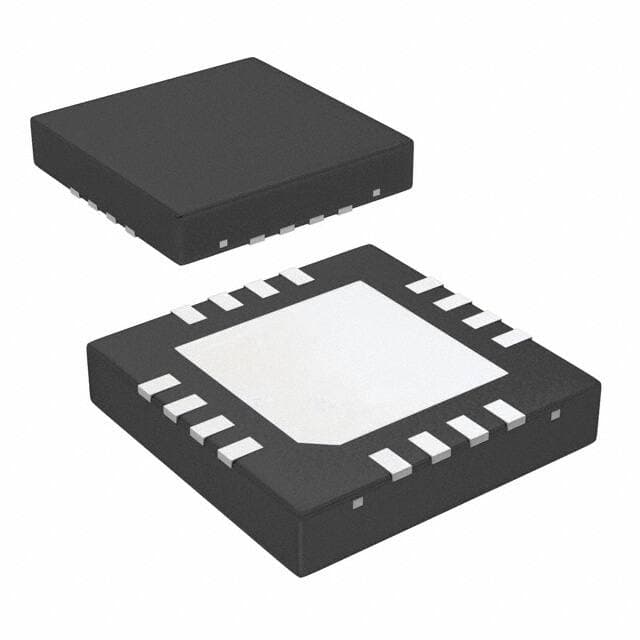

Semtech SX1701BI085TRT

Manufacturer No:

SX1701BI085TRT

Manufacturer:

Semtech

Package:

16-VQFN Exposed Pad

Description:

Tape & Reel (TR) 40MHz~2.5GHz 4.5V~5.3V P1dB:13dBm 7dB Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SX1701BI085TRT information

Semtech SX1701BI085TRT technical specifications, attributes, parameters and parts with similar specifications to Semtech SX1701BI085TRT.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-VQFN Exposed Pad

Number of Pins
16

Packaging
Tape & Reel (TR)

Published
2008

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Voltage - Supply
4.5V~5.3V

Terminal Position
QUAD

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.65mm

Frequency
40MHz~2.5GHz

Pin Count
16

Operating Supply Voltage
5V

Temperature Grade
INDUSTRIAL

Telecom IC Type
TELECOM CIRCUIT

Noise Figure
7dB

P1dB
13dBm

Length
4mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Semtech SX1701BI085TRT.

PCN Packaging:

semtechcorporation-sx1239imltrt-pcnpackaging-9522.pdf

SX1701BI085TRT Overview

High reliability is achieved by using advanced RF Amp' packagings Tape & Reel (TR).Since the RF power Amplifier is packed in 16-VQFN Exposed Pad, shipping overseas is convenient.The way to mount Amplifiers RF is Surface Mount.There is 4.5V~5.3V voltage limit on the Amplifiers RF.With 16 pins, the high power RF Amplifier is designed.As a whole, there are 1 function(s) in the RF Amplifier.Different functions can be applied to 16 terminations.RF power Amplifier shouldrun at a temperature 85°C higher than 85°C.
