Semtech SX1272-72RF1CES

Manufacturer No:

SX1272-72RF1CES

Manufacturer:

Semtech

Package:

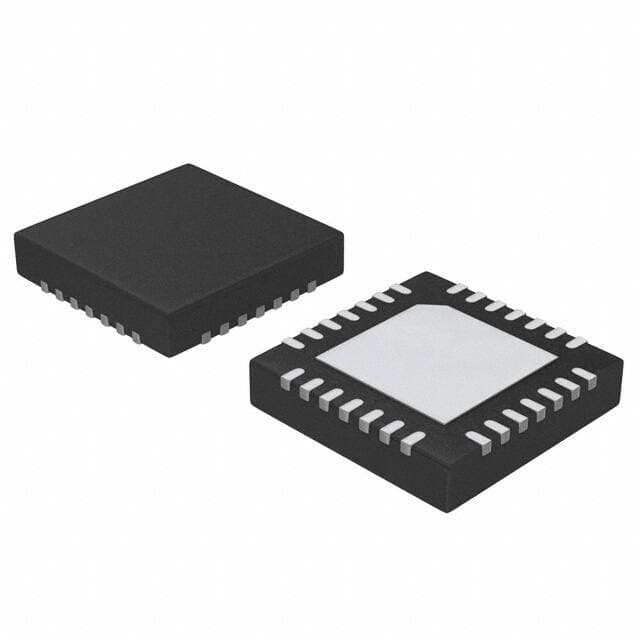

28-VFQFN Exposed Pad

Description:

TxRx Only 915MHz 1.8V~3.7V SPI 300kbps 11.2mA - Receiving 125mA - Transmitting FSK, GFSK, GMSK, MSK, OOK 28-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SX1272-72RF1CES information

Semtech SX1272-72RF1CES technical specifications, attributes, parameters and parts with similar specifications to Semtech SX1272-72RF1CES.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Surface Mount

Package / Case
28-VFQFN Exposed Pad

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Type
TxRx Only

Voltage - Supply
1.8V~3.7V

Frequency
915MHz

Base Part Number
SX127

Protocol
LoRa™

Power - Output
20dBm

RF Family/Standard
802.15.4

Sensitivity
-137dBm

Data Rate (Max)
300kbps

Serial Interfaces
SPI

Current - Receiving
11.2mA

Current - Transmitting
125mA

Modulation
FSK, GFSK, GMSK, MSK, OOK

Download datasheets and manufacturer documentation for Semtech SX1272-72RF1CES.

PCN Packaging:

semtechcorporation-sx1239imltrt-pcnpackaging-9522.pdf

SX1272-72RF1CES Overview

There is also a 28-VFQFN Exposed Pad package that RF transceiver IC is used to save space on the board. As far as RF transceiver's mounting is concerned, Surface Mount is adopted.TxRx Only emerges with transceiver RF's high efficiency and reliability.High reliability is achieved using advanced transceiver RF' packaging Tape & Reel (TR).Using the SX127 search parameter, you can discover variants of the transceiver.RF transceiver operates on the basis of the frequency of 915MHz.

SX1272-72RF1CES Features

28-VFQFN Exposed Pad package
Surface Mount for mounting
TxRx Only
Tape & Reel (TR) is used
Use SX127

SX1272-72RF1CES Applications

There are a lot of Semtech Corporation
SX1272-72RF1CES RF Transceiver ICs applications.

Low-power IoT applications
LoT applications
Power Amplifier (PA)
Low Noise Amplifier (LNA)
Transmit
Receive
Switch
Power management
Internet of Things (IoT)
Secure Payment

User Guide
