SEMTECH SX1240ISTRT
Manufacturer No:
SX1240ISTRT
Manufacturer:
Package:

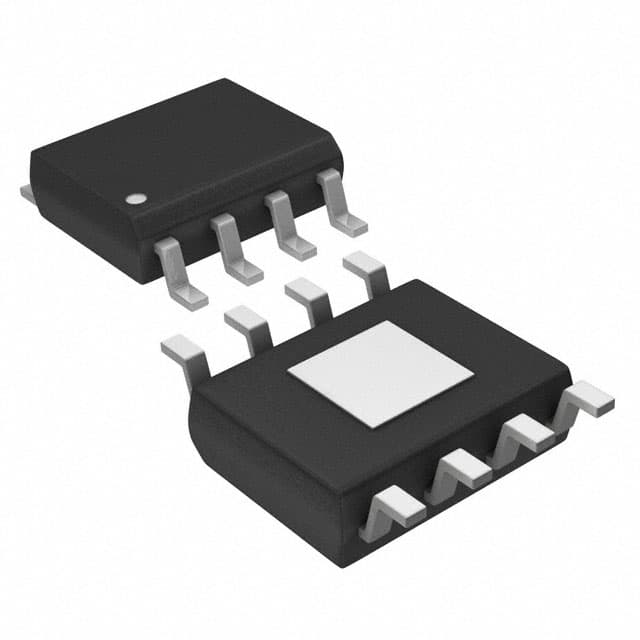

8-SOIC (0.154, 3.90mm Width) Exposed Pad
Description:
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
SX1240ISTRT Information
SEMTECH SX1240ISTRT technical specifications, attributes, parameters and parts with similar specifications to SEMTECH SX1240ISTRT.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Mount
- Surface Mount
- Package / Case
- 8-SOIC (0.154, 3.90mm Width) Exposed Pad
- Number of Pins
- 8
- Operating Temperature
- -40°C~85°C
- Packaging
- Tape & Reel (TR)
- Published
- 2009
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- Type
- Parameter
- ECCN Code
- EAR99
- Applications
- Home / Industrial Automation, Remote Access, Security Alarms
- Voltage - Supply
- 1.8V~3.7V
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Frequency
- 418MHz 434MHz 868MHz
- Base Part Number
- SX124
- Pin Count
- 8
- Operating Supply Voltage
- 3.3V
- Operating Supply Current
- 16.5mA
Download datasheets and manufacturer documentation for SEMTECH SX1240ISTRT.
PCN Packaging:
SX1240ISTRT Description
The SX1240 is an ultra-low-cost, fully integrated FSK or OOK compatible transmitter suitable for operation in the 418, 434 and 868 MHz licence free ISM bands. For applications where economy is paramount, the SX1240 may be used without the requirement for configuration via an MCU. The transmitter is configured for default operation at a frequency of 433.92 MHz or 868.3 MHz. However, in conjunction with a microcontroller the communication link parameters may be re-configured. Including, output power, modulation format and operating channel. The SX1240 offers integrated radio performance with cost efficiency and is suited for worldwide operations in particular Europe (ETSI EN 300-220-1), North America (FCC part 15.231).
SX1240ISTRT Features
+10 dBm or 0 dBm Configurable output power
Bit rates up to 100 kbps
FSK and OOK modulation
2 Preconfigured Modes for Operation without MCU
433.92 MHz OOK & 868.3 MHz FSK
1.8 to 3.7 V supply range
Low BOM Fully Integrated Tx
8 Selectable Centre Frequencies
Programmable Frequency Tuning of low cost XTAL
SX1240ISTRT Applications
Low-Cost Consumer Electronic Applications
Remote Keyless Entry (RKE)
Remote Control / Security Systems
Audio Accessories
Process and building / home control
Active RFID
SX1240ISTRT Relevant information
