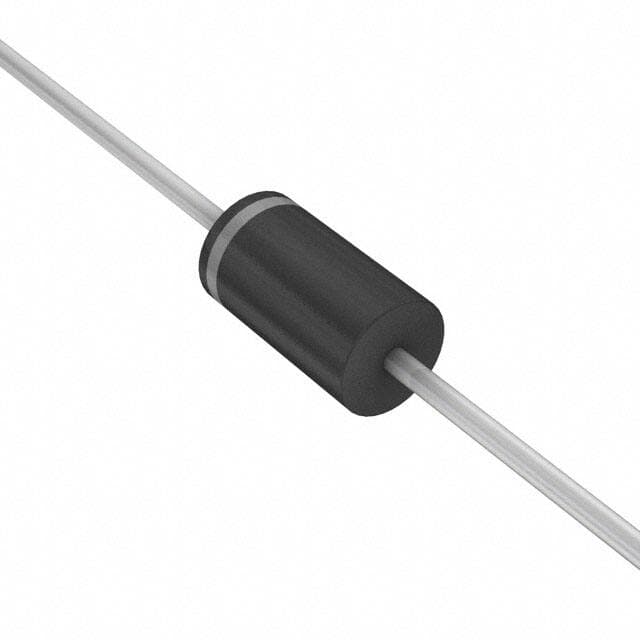

Manufacturer No:

STTH302

Manufacturer:

ST

Package:

DO-201AD, Axial

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 950mV @ 3A 175°C Max 3?A @ 200V 2-Termination Tape & Box (TB) DO-201AD, Axial Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STTH302 information

ST STTH302 technical specifications, attributes, parameters and parts with similar specifications to ST STTH302.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • DO-201AD, Axial
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Box (TB)
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 200V
  • Terminal Form
  • WIRE
  • Current Rating
  • 1A
  • Base Part Number
  • STTH30
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 3?A @ 200V
  • Output Current
  • 3A
  • Voltage - Forward (Vf) (Max) @ If
  • 950mV @ 3A
  • Case Connection
  • ISOLATED
  • Forward Current
  • 3A
  • Operating Temperature - Junction
  • 175°C Max
  • Max Surge Current
  • 130A
  • Application
  • EFFICIENCY
  • Forward Voltage
  • 950mV
  • Max Reverse Voltage (DC)
  • 200V
  • Average Rectified Current
  • 3A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 35 ns
  • Peak Reverse Current
  • 3?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 200V
  • Peak Non-Repetitive Surge Current
  • 130A
  • Reverse Voltage
  • 200V
  • Max Forward Surge Current (Ifsm)
  • 130A
  • Recovery Time
  • 35 ns
  • Height
  • 5.3mm
  • Length
  • 9.5mm

Download datasheets and manufacturer documentation for ST STTH302.

Datasheets:

STTH302 Overview


200V is a reasonable reverse voltage.There is an average rectified current of 3A volts for this device.The allowable value of forward current reaches 3A.Its current rating is 1A, which is the maximum current that a fuse will carry for an indefinite period without too much deterioration of the fuse element. 130A is the maximum value of surge current that can be used.In the datasheets, the peak reverse is 3?A, as indicated by the data chart.

STTH302 Features


an average rectified current of 3A volts
a current rating of 1A
the peak reverse is 3?A


STTH302 Applications


There are a lot of STMicroelectronics
STTH302 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode

User Guide
