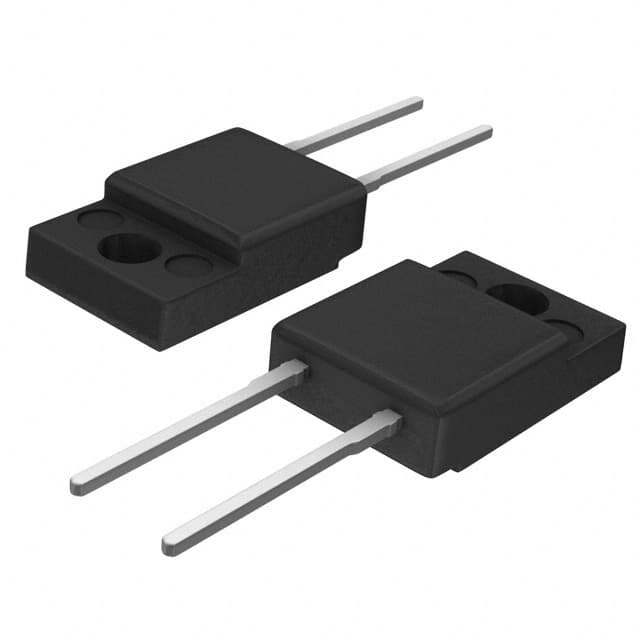

ST STTH1502FP

Manufacturer No:

STTH1502FP

Manufacturer:

ST

Package:

PLASTIC, TO-220FPAC, 2 PIN

Description:

Description: 200 V, 15 A Ultrafast Diode

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STTH1502FP information

ST STTH1502FP technical specifications, attributes, parameters and parts with similar specifications to ST STTH1502FP.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Part Package Code
TO-220AC

Package Description
PLASTIC, TO-220FPAC, 2 PIN

Pin Count
3

Reach Compliance Code
not_compliant

ECCN Code
EAR99

HTS Code
8541.10.00.80

Factory Lead Time
16 Weeks, 3 Days

Samacsys Manufacturer
STMicroelectronics

Additional Feature
FREE WHEELING DIODE

Application
ULTRA FAST RECOVERY

Case Connection
ISOLATED

Configuration
SINGLE

Diode Element Material
SILICON

Diode Type
RECTIFIER DIODE

Forward Voltage-Max (VF)
0.95 V

JEDEC-95 Code
TO-220AC

JESD-30 Code
R-PSFM-T2

JESD-609 Code
e3

Non-rep Pk Forward Current-Max
150 A

Number of Elements
1

Number of Phases
1

Operating Temperature-Max
175 °C

Output Current-Max
15 A

Package Body Material
PLASTIC/EPOXY

Package Shape
RECTANGULAR

Package Style
FLANGE MOUNT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Qualification Status
Not Qualified

Rep Pk Reverse Voltage-Max
200 V

Reverse Recovery Time-Max
0.036 µs

Surface Mount
NO

Terminal Finish
Tin (Sn)

Terminal Form
THROUGH-HOLE

Terminal Position
SINGLE

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Download datasheets and manufacturer documentation for ST STTH1502FP.

Datasheets:

en.CD00110355.pdf

STTH1502FP Overview

The reverse voltage should be 200V.In this device, there is an average rectified current of 15A volts.Forward current may not exceed 15A.15A is its maximum current rating, which is the maximum current that a fuse can handle without deteriorating.This is the maximum amount of 150A surge current that can be used.As the data chart indicates, the peak reverse is 10?A.

STTH1502FP Features

an average rectified current of 15A volts
a current rating of 15A
the peak reverse is 10?A

STTH1502FP Applications

There are a lot of STMicroelectronics
STTH1502FP applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode

User Guide
