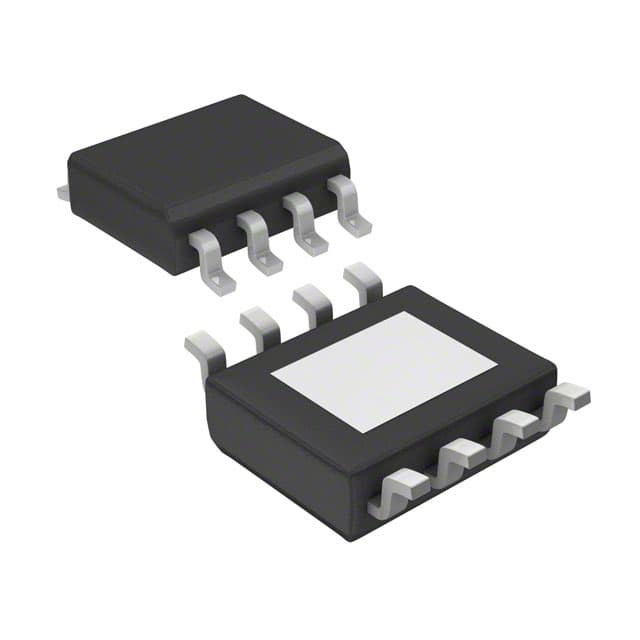

ST STPW12PHR

Manufacturer No:

STPW12PHR

Manufacturer:

Package:

SOP-8

Description:

Programmable electronic power breaker for 12V bus

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STPW12PHR information

ST STPW12PHR technical specifications, attributes, parameters and parts with similar specifications to ST STPW12PHR.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Package Description
SOP-8

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
STMicroelectronics

Adjustable Threshold
YES

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

JESD-30 Code
R-PDSO-G8

Length
4.9 mm

Number of Channels
1

Number of Functions
1

Number of Terminals
8

Operating Temperature-Max
125 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
HSOP

Package Equivalence Code
SOP8,.24

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE, HEAT SINK/SLUG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Seated Height-Max
1.7 mm

Supply Voltage-Min (Vsup)
10.5 V

Supply Voltage-Nom (Vsup)
12 V

Surface Mount
YES

Temperature Grade
AUTOMOTIVE

Terminal Form
GULL WING

Terminal Pitch
1.27 mm

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
3.9 mm

Download datasheets and manufacturer documentation for ST STPW12PHR.

Datasheets:

en.DM00483488.pdf

STPW12PHR Overview

Including buck boost converter in package Tape & Reel (TR) is a good idea.In the same manner as 8-PowerSOIC (0.154, 3.90mm Width), voltage regulator is packaged.Current regulator is mounted by Surface Mount.This is a member of the STPW12 family.

STPW12PHR Features

Tape & Reel (TR) package
STPW12 family

STPW12PHR Applications

There are a lot of STMicroelectronics
STPW12PHR Current Regulation/Managements applications.

Programmable current source
Automotive current measurement
Industrial applications current measurement
Battery management
Over current monitor
Over-current measurement
Current sensing
Motor controls
Transmission controls
Diesel injection controls
