ST STPS40M80CR

Manufacturer No:

STPS40M80CR

Manufacturer:

Package:

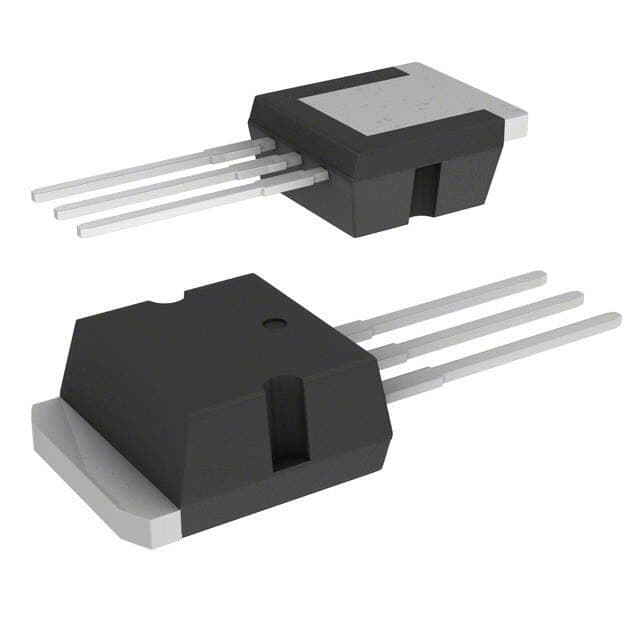

TO-262-3 Long Leads, I2Pak, TO-262AA

Description:

Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) 175°C Max 20A 80V-DC 2-Element TO-262-3 Long Leads, I2Pak, TO-262AA Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STPS40M80CR information

ST STPS40M80CR technical specifications, attributes, parameters and parts with similar specifications to ST STPS40M80CR.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-262-3 Long Leads, I2Pak, TO-262AA

Number of Pins
3

Diode Element Material
SILICON

Packaging
Tube

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Max Operating Temperature
175°C

Min Operating Temperature
-65°C

Additional Feature
LOW LEAKAGE CURRENT

HTS Code
8541.10.00.80

Subcategory
Rectifier Diodes

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
STPS40

Pin Count
3

Qualification Status
Not Qualified

Number of Elements
2

Element Configuration
Common Cathode

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr
65?A @ 80V

Voltage - Forward (Vf) (Max) @ If
735mV @ 20A

Forward Current
40A

Max Reverse Leakage Current
65?A

Operating Temperature - Junction
175°C Max

Max Surge Current
200A

Application
POWER

Forward Voltage
920mV

Max Reverse Voltage (DC)
80V

Average Rectified Current
20A

Number of Phases
1

Peak Reverse Current
65?A

Max Repetitive Reverse Voltage (Vrrm)
80V

Peak Non-Repetitive Surge Current
200A

Diode Configuration
1 Pair Common Cathode

Max Forward Surge Current (Ifsm)
200A

Height
10.75mm

Length
10.4mm

Width
4.6mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST STPS40M80CR.

Datasheets:

stmicroelectronics-stps40m80ct-datasheets-5271.pdf

STPS40M80CR Overview

A forward voltage of 920mV will enable the device to operate.We should be monitoring the surge current and keeping it below 200A.A forward voltage of 40A will enable the device to operate.Array is powered by a reverse voltage peak of 65?A.When reverse biased, its maximal reverse leakage current is 65?A, which corresponds to its maximum reverse leakage current.

STPS40M80CR Features

920mV forward voltage
a peak voltage of 65?A
a reverse voltage peak of 65?A

STPS40M80CR Applications

There are a lot of STMicroelectronics
STPS40M80CR applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
