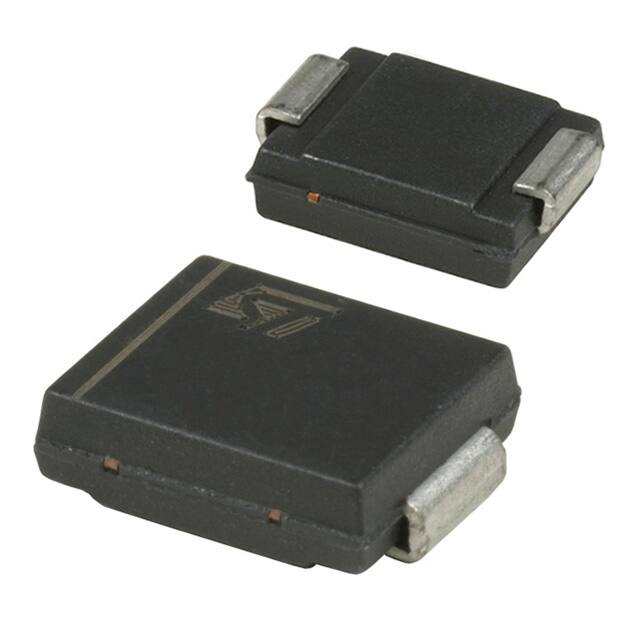

ST STPS3L60SY
ST STPS3L60SY

ST STPS3L60SY

Manufacturer No:

STPS3L60SY

Manufacturer:

ST

Package:

SMC, 2 PIN

Description:

Description: Automotive 60 V, 3 A SMC Low Drop Power Schottky Rectifier

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STPS3L60SY information

ST STPS3L60SY technical specifications, attributes, parameters and parts with similar specifications to ST STPS3L60SY.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • STMICROELECTRONICS
  • Package Description
  • SMC, 2 PIN
  • Reach Compliance Code
  • not_compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8541.10.00.80
  • Factory Lead Time
  • 15 Weeks
  • Samacsys Manufacturer
  • STMicroelectronics
  • Application
  • POWER
  • Configuration
  • SINGLE
  • Diode Element Material
  • SILICON
  • Diode Type
  • RECTIFIER DIODE
  • Forward Voltage-Max (VF)
  • 0.94 V
  • JEDEC-95 Code
  • DO-214AB
  • JESD-30 Code
  • R-PDSO-C2
  • JESD-609 Code
  • e3
  • Moisture Sensitivity Level
  • 1
  • Non-rep Pk Forward Current-Max
  • 75 A
  • Number of Elements
  • 1
  • Number of Phases
  • 1
  • Number of Terminals
  • 2
  • Operating Temperature-Max
  • 150 °C
  • Operating Temperature-Min
  • -40 °C
  • Package Body Material
  • PLASTIC/EPOXY
  • Package Shape
  • RECTANGULAR
  • Package Style
  • SMALL OUTLINE
  • Peak Reflow Temperature (Cel)
  • 260
  • Reference Standard
  • AEC-Q101
  • Rep Pk Reverse Voltage-Max
  • 60 V
  • Reverse Current-Max
  • 55 µA
  • Surface Mount
  • YES
  • Technology
  • SCHOTTKY
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Terminal Form
  • C BEND
  • Terminal Position
  • DUAL
  • Time@Peak Reflow Temperature-Max (s)
  • 30

Download datasheets and manufacturer documentation for ST STPS3L60SY.

Datasheets:

STPS3L60SY Overview


For this device, the average rectified current is 3A volts.Whenever the reverse current is allowed to reach its maximum, 55?A is reached.3A represents the maximum output current.

STPS3L60SY Features


an average rectified current of 3A volts
A maximum reverse current of 55?A
3A is the maximum value


STPS3L60SY Applications


There are a lot of STMicroelectronics
STPS3L60SY applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
