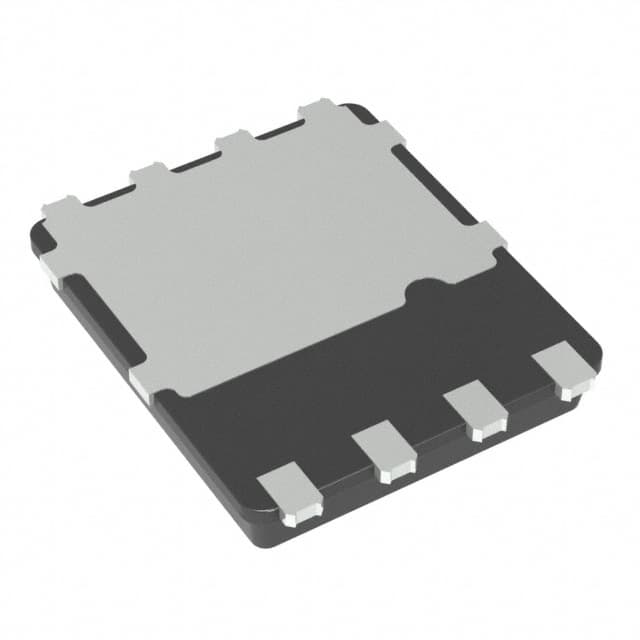

ST STPS3045DJFY-TR

Manufacturer No:

STPS3045DJFY-TR

Manufacturer:

Package:

8-PowerVDFN

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 680mV @ 30A -40°C~175°C 300?A @ 45V 5-Termination Tape & Reel (TR) 8-PowerVDFN Surface Mount, Wettable Flank

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STPS3045DJFY-TR information

ST STPS3045DJFY-TR technical specifications, attributes, parameters and parts with similar specifications to ST STPS3045DJFY-TR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount, Wettable Flank

Package / Case
8-PowerVDFN

Surface Mount
YES

Diode Element Material
SILICON

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q101

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Additional Feature
FREE WHEELING DIODE

Technology
AVALANCHE

Terminal Position
DUAL

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
STPS3045

JESD-30 Code
R-PDSO-F5

Operating Temperature (Max)
175°C

Number of Elements
1

Configuration
SINGLE

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Voltage - Forward (Vf) (Max) @ If
680mV @ 30A

Case Connection
CATHODE

Operating Temperature - Junction
-40°C~175°C

Voltage - DC Reverse (Vr) (Max)
45V

Current - Average Rectified (Io)
30A

Number of Phases
1

Rep Pk Reverse Voltage-Max
45V

Non-rep Pk Forward Current-Max
380A

Reverse Current-Max
300?A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST STPS3045DJFY-TR.

Datasheets:

stmicroelectronics-stps3045djfytr-datasheets-3047.pdf

STPS3045DJFY-TR Description

Schottky rectifier suitable for high frequency DC to DC converters and switch mode power supplies. This device is intended for use in low voltage, high frequency inverters, free-wheeling, and polarity protection applications in automotive applications and is packaged in PowerFLATTM wettable flanks.

STPS3045DJFY-TR Features

Reduced forward voltage drop
Very little conduction losses
Minimal switching costs
Very quick switching
Minimal thermal conductivity
Specified avalanche capability

STPS3045DJFY-TR Applications

Switching applications
