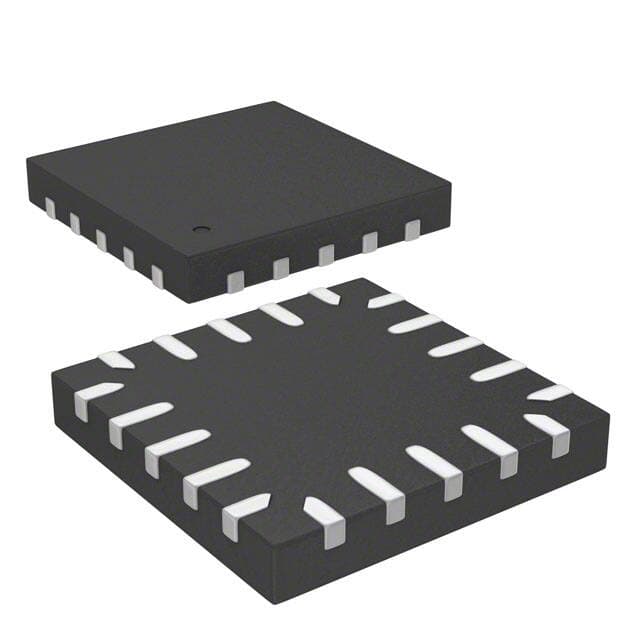

ST STM8S103F2U6TR
ST STM8S103F2U6TR

ST STM8S103F2U6TR

Manufacturer No:

STM8S103F2U6TR

Manufacturer:

ST

Package:

20-UFQFN

Description:

4KB 4K x 8 FLASH STM8 8-Bit Microcontroller STM8S Series STM8S103 20 Pin 16MHz 3.3V 20-UFQFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STM8S103F2U6TR information

ST STM8S103F2U6TR technical specifications, attributes, parameters and parts with similar specifications to ST STM8S103F2U6TR.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 7 months ago)
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 20-UFQFN
  • Number of Pins
  • 20
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • STM8S
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 20
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • HTS Code
  • 8542.31.00.01
  • Subcategory
  • Microcontrollers
  • Max Power Dissipation
  • 220mW
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.5mm
  • Frequency
  • 16MHz
  • Pin Count
  • 20
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Power Supplies
  • 3.3/5V
  • Supply Voltage-Min (Vsup)
  • 2.95V
  • Interface
  • I2C, IrDA, LIN, SPI, UART, USART
  • Memory Size
  • 4kB
  • Oscillator Type
  • Internal
  • Number of I/O
  • 16
  • RAM Size
  • 1K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 2.95V~5.5V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER
  • Core Processor
  • STM8
  • Peripherals
  • Brown-out Detect/Reset, POR, PWM, WDT
  • Program Memory Type
  • FLASH
  • Core Size
  • 8-Bit
  • Program Memory Size
  • 4KB 4K x 8
  • Connectivity
  • I2C, IrDA, LINbus, SPI, UART/USART
  • Bit Size
  • 8
  • Data Converter
  • A/D 5x10b
  • Watchdog Timer
  • Yes
  • Has ADC
  • YES
  • DMA Channels
  • NO
  • Data Bus Width
  • 8b

Download datasheets and manufacturer documentation for ST STM8S103F2U6TR.

Datasheets:

STM8S103F2U6TR Description


STM8S103F2U6TR is a type of access line 8-bit microcontroller provided by STMicroelectronics. It is able to deliver 8 Kbytes of Flash program memory and integrated true data EEPROM. Moreover, it is characterized by high performance, robustness, and reduced system cost. Based on advanced core and peripherals made in state-of-the-art technology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock sources, and a clock security system, high performance, and robustness can be ensured. Its ability to offer reduced system cost is provided due to a high system integration level with internal clock oscillators, watchdog, and brown-out reset.



STM8S103F2U6TR Features


  • 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline

  • Program memory: 8 Kbyte Flash

  • Data memory: 640-byte true data EEPROM

  • Flexible clock control

  • Nested interrupt controller with 32 interrupts

  • Advanced control timer



STM8S103F2U6TR Applications


  • Motor control

  • Consumer electronics


User Guide
