ST STM32L476JGY7TR

Manufacturer No:

STM32L476JGY7TR

Manufacturer:

Package:

72-UFBGA, WLCSP

Description:

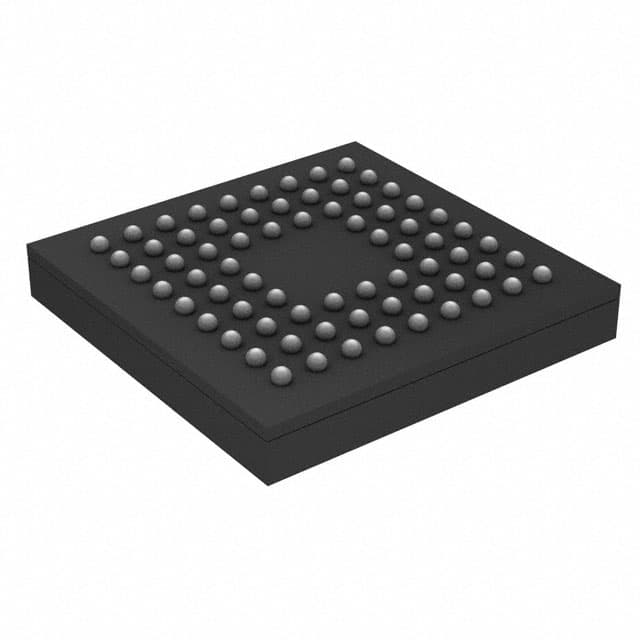

1MB 1M x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller STM32L4 Series STM32L476 72 Pin 1.8V 72-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STM32L476JGY7TR information

ST STM32L476JGY7TR technical specifications, attributes, parameters and parts with similar specifications to ST STM32L476JGY7TR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 6 months ago)

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
72-UFBGA, WLCSP

Number of Pins
72

Operating Temperature
-40°C~105°C TA

Packaging
Tape & Reel (TR)

Series
STM32L4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
72

ECCN Code
3A991.A.2

HTS Code
8542.31.00.01

Max Power Dissipation
434mW

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
1.8V

Terminal Pitch
0.4mm

Base Part Number
STM32L476

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
1.71V

Interface
CAN, I2C, SPI, UART, USART, USB

Oscillator Type
Internal

Number of I/O
57

RAM Size
128K x 8

Voltage - Supply (Vcc/Vdd)
1.71V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM® Cortex®-M4

Peripherals
Brown-out Detect/Reset, DMA, LCD, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
1MB 1M x 8

Connectivity
CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG

Bit Size
32

Data Converter
A/D 16x12b; D/A 2x12b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
YES

DAC Channels
YES

Number of Timers/Counters
13

Address Bus Width
2

Core Architecture
ARM

On Chip Program ROM Width
8

Download datasheets and manufacturer documentation for ST STM32L476JGY7TR.

Datasheets:

stmicroelectronics-stm32l476vgt6tr-datasheets-4706.pdf

stmicroelectronics-stm32l476jgy7tr-datasheets-2717.pdf

STM32L476JGY7TR Overview

The package is in 72-UFBGA, WLCSP format. The MCU has 57 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 32-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -40°C~105°C TA. The electrical component that you are looking at belongs to the STM32L4 series of components. Microcontroller has abundant program memory size of 1MB 1M x 8. The ARM® Cortex®-M4 Core Processor powers the device and is one of its key features. This Microcontroller belongs to the MICROCONTROLLER, RISC uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 72 of terminations. A 32-bit operation is performed by this part. There is an output of 1.8V volts from the Microcontroller chip. A total of YES DMA channels are available on MCU chip. This MCU is implemented with 1MB memory. STM32L476 serves as a base part number to find alternatives. It is possible for the device to work with the motor using the PWM channel YES. It is possible to access the 72 pins on the chip through the 72 pins. It is equipped with 13 timers and counters. As far as the CPU is concerned, it is embedded with the the CORTEX-M4 family of processors. There is a ARM core architecture integrated into it. An external interrupt is included with the chip part, which consists of 16 interrupts.

STM32L476JGY7TR Features

72-UFBGA, WLCSP package
Mounting type of Surface Mount

STM32L476JGY7TR Applications

There are a lot of STMicroelectronics
STM32L476JGY7TR Microcontroller applications.
