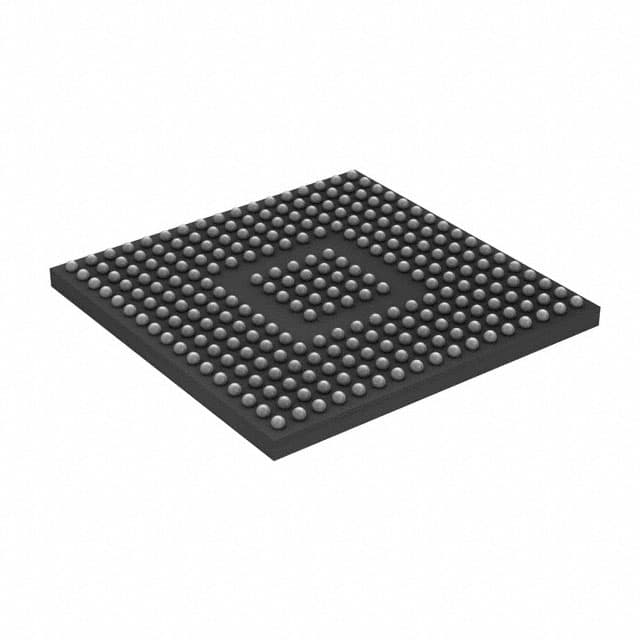

ST STM32H750XBH6

Manufacturer No:

STM32H750XBH6

Manufacturer:

Package:

TFBGA-265

Description:

Description: High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 128KBytes of Flash memory, 1MB RAM, 480 MHz CPU, L1 cache, external memory interface, JPEG codec, HW crypto, large set of peripherals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STM32H750XBH6 information

ST STM32H750XBH6 technical specifications, attributes, parameters and parts with similar specifications to ST STM32H750XBH6.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Package Description
TFBGA-265

Reach Compliance Code
compliant

ECCN Code
5A992.C

HTS Code
8542.31.00.01

Factory Lead Time
20 Weeks

Date Of Intro
2018-07-09

Samacsys Manufacturer
STMicroelectronics

Has ADC
YES

Bit Size
32

Boundary Scan
YES

CPU Family
CORTEX-M7

Clock Frequency-Max
48 MHz

DAC Channels
YES

DMA Channels
YES

Format
FLOATING-POINT

Integrated Cache
YES

JESD-30 Code
S-PBGA-B265

Length
14 mm

Low Power Mode
YES

Number of DMA Channels
16

Number of I/O Lines
168

Number of Terminals
265

Number of Timers
20

On Chip Data RAM Width
8

On Chip Program ROM Width
8

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

PWM Channels
YES

Package Body Material
PLASTIC/EPOXY

Package Code
TFBGA

Package Equivalence Code
BGA265,17X17,32

Package Shape
SQUARE

Package Style
GRID ARRAY, THIN PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
NOT SPECIFIED

RAM (bytes)
1085440

ROM (words)
131072

ROM Programmability
FLASH

Seated Height-Max
1.1 mm

Speed
400 MHz

Supply Current-Max
400 mA

Supply Voltage-Max
3.6 V

Supply Voltage-Min
3.3 V

Supply Voltage-Nom
3.3 V

Surface Mount
YES

Download datasheets and manufacturer documentation for ST STM32H750XBH6.

Datasheets:

en.DM00496677.pdf

STM32H750XBH6 Description

STM32H750XBH6 devices are based on the high-performance Arm? Cortex?-M7 32-bit RISC core operating at up to 400 MHz. The Cortex? -M7 core features a floating-point unit (FPU) that supports Arm? double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. STM32H750xB devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

STM32H750XBH6 devices incorporate high-speed embedded memories with a Flash memory of 128 Kbytes, 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, 864 Kbytes of user SRAM, and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix, and a multi-layer AXI interconnects supporting internal and external memory access.

STM32H750XBH6 Features

1.62 to 3.6 V application supply and I/Os

POR, PDR, PVD, and BOR

Dedicated USB power embedding a 3.3 V internal regulator to supply the internal PHYs

Embedded regulator (LDO) with configurable scalable output to supply the digital circuitry

Voltage scaling in Run and Stop mode (5 configurable ranges)

Backup regulator (~0.9 V)

The voltage reference for analog peripheral/VREF+

Low-power modes: Sleep, Stop, Standby, and VBAT supporting battery charging
