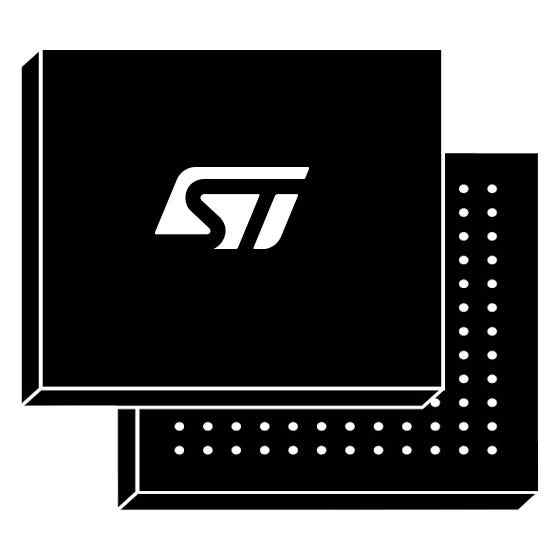

STMicroelectronics STM32G441RBI6

The STM32G441xB devices are based on the high-performance Arm^® Cortex^®-M4 32-bit RISC core. They operate at a frequency of up to 170 MHz.

The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm single-precision data-processing instructions and all the data types. It also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application’s security.

These devices embed high-speed memories (128 Kbytes of Flash memory, and 32 Kbytes of SRAM), an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection, securable memory area and proprietary code readout protection.

The devices embed peripherals allowing mathematical/arithmetic function acceleration (CORDIC for trigonometric functions and FMAC unit for filter functions).

They offer two fast 12-bit ADCs (5 Msps), four comparators, three operational amplifiers, four DAC channels (2 external and 2 internal), an internal voltage reference buffer, a low-power RTC, one general-purpose 32-bit timers, two 16-bit PWM timers dedicated to motor control, seven general-purpose 16-bit timers, and one 16-bit low-power timer.

They also feature standard and advanced communication interfaces such as:

- Three I2Cs

- Three SPIs multiplexed with two half duplex I2Ss

- Three USARTs, one UART and one low-power UART.

- One FDCAN

- One SAI

- USB device

- UCPD

The STM32G441xB devices embed an AES.

The devices operate in the -40 to +85 °C (+105 °C junction) and -40 to +125 °C (+130 °C junction) temperature ranges from a 1.71 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.

Some independent power supplies are supported including an analog independent supply input for ADC, DAC, OPAMPs and comparators. A V_BAT input allows backup of the RTC and the registers.

The STM32G441xB family offers 9 packages from 32-pin to 100-pin.

• Includes ST state-of-the-art patented technology
  • Core: Arm^® 32-bit Cortex^®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait-state execution from Flash memory, frequency up to 170 MHz with 213 DMIPS, MPU, DSP instructions

  • Operating conditions:

    • V_DD, V_DDA voltage range: 1.71 V to 3.6 V


  • Mathematical hardware accelerators

    • CORDIC for trigonometric functions acceleration


    • FMAC: filter mathematical accelerator


  • Memories

    • 128 Kbytes of Flash memory with ECC support, proprietary code readout protection (PCROP), securable memory area, 1 Kbyte OTP


    • 22 Kbytes of SRAM, with hardware parity check implemented on the first 16 Kbytes


    • Routine booster: 10 Kbytes of SRAM on instruction and data bus, with hardware parity check (CCM SRAM)


  • Reset and supply management

    • Power-on/power-down reset (POR/PDR/BOR)


    • Programmable voltage detector (PVD)


    • Low-power modes: sleep, stop, standby and shutdown


  • Clock management

    • 4 to 48 MHz crystal oscillator


    • Internal 16 MHz RC with PLL option (± 1%)


  • Up to 86 fast I/Os

    • All mappable on external interrupt vectors


    • Several I/Os with 5 V tolerant capability


  • Interconnect matrix

  • 12-channel DMA controller

  • 2 x ADCs 0.25 µs (up to 23 channels). Resolution up to 16-bit with hardware oversampling, 0 to 3.6 V conversion range

  • 4 x 12-bit DAC channels

    • 2 x buffered external channels 1 MSPS


    • 2 x unbuffered internal channels 15 MSPS


  • 4 x ultra-fast rail-to-rail analog comparators

  • 3 x operational amplifiers that can be used in PGA mode, all terminals accessible

  • Internal voltage reference buffer (VREFBUF) supporting three output voltages (2.048 V, 2.5 V, 2.9 V)

  • 14 timers:

    • 1 x 32-bit timer and 2 x 16-bit timers with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input


    • 2 x 16-bit 8-channel advanced motor control timers, with up to 8 x PWM channels, dead time generation and emergency stop


    • 1 x 16-bit timer with 2 x IC/OCs, one OCN/PWM, dead time generation and emergency stop


    • 2 x 16-bit timers with IC/OC/OCN/PWM, dead time generation and emergency stop


    • 2 x watchdog timers (independent, window)


    • 1 x SysTick timer: 24-bit downcounter


    • 2 x 16-bit basic timers


    • 1 x low-power timer


  • Calendar RTC with alarm, periodic wakeup from stop/standby

  • Communication interfaces

    • 1 x FDCAN controller supporting flexible data rate


    • 3 x I²C Fast mode plus (1 Mbit/s) with 20 mA current sink, SMBus/PMBus, wakeup from stop


    • 4 x USART/UARTs (ISO 7816 interface, LIN, IrDA, modem control)


    • 1 x LPUART


    • 3 x SPIs, 4 to 16 programmable bit frames, 2 x with multiplexed half duplex I²S interface


    • 1 x SAI (serial audio interface)


    • USB 2.0 full-speed interface with LPM and BCD support


    • IRTIM (infrared interface)


    • USB Type-C™ /USB power delivery controller (UCPD)


  • True random number generator (RNG)

  • CRC calculation unit, 96-bit unique ID

  • AES: 128/256-bit key encryption hardware accelerator

  • Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell™
