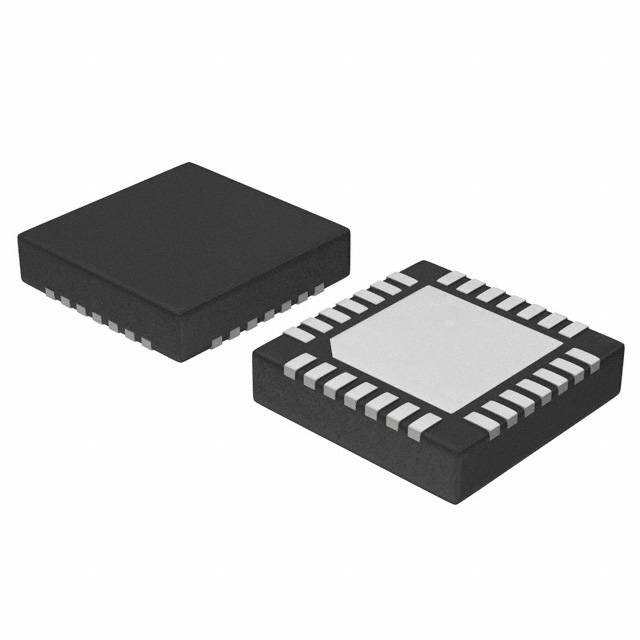

ST STM32G031G8U6

Manufacturer No:

STM32G031G8U6

Manufacturer:

Package:

UFQFPN-28

Description:

Mainstream Arm Cortex-M0+ MCU with 64 Kbytes of Flash memory, 8 Kbytes RAM, 64 MHz CPU, 2x USART, timers, ADC, comm. I/F, 1.7-3.6V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STM32G031G8U6 information

ST STM32G031G8U6 technical specifications, attributes, parameters and parts with similar specifications to ST STM32G031G8U6.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Package Description
UFQFPN-28

Reach Compliance Code
compliant

ECCN Code
3A991.A.2

HTS Code
8542.31.00.01

Date Of Intro
2019-07-10

Samacsys Manufacturer
STMicroelectronics

Has ADC
YES

Bit Size
32

Boundary Scan
NO

CPU Family
CORTEX-M0

Clock Frequency-Max
48 MHz

DAC Channels
NO

DMA Channels
YES

Format
FIXED POINT

Integrated Cache
NO

JESD-30 Code
S-XQCC-N28

JESD-609 Code
e4

Length
4 mm

Low Power Mode
YES

Moisture Sensitivity Level
3

Number of DMA Channels
5

Number of Serial I/Os
3

Number of Terminals
28

Number of Timers
9

On Chip Data RAM Width
8

On Chip Program ROM Width
8

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

PWM Channels
YES

Package Body Material
UNSPECIFIED

Package Code
VQCCN

Package Equivalence Code
LCC28,.16SQ,20

Package Shape
SQUARE

Package Style
CHIP CARRIER, VERY THIN PROFILE

Peak Reflow Temperature (Cel)
260

RAM (bytes)
8192

ROM (words)
65536

ROM Programmability
FLASH

Seated Height-Max
0.6 mm

Speed
64 MHz

Supply Current-Max
6.9 mA

Supply Voltage-Max
3.6 V

Supply Voltage-Min
1.8 V

Supply Voltage-Nom
1.8 V

Download datasheets and manufacturer documentation for ST STM32G031G8U6.

Datasheets:

en.DM00613879.pdf

STM32G031G8U6 Description

The high-performance Arm? Cortex?-M0+ 32-bit RISC processor of the STM32G031x4/x6/x8 mainstream microcontrollers operates at up to 64 MHz frequency. They are appropriate for a wide range of applications in the consumer, industrial, and appliance domains and prepared for Internet of Things (IoT) solutions because to their high level of integration.

A memory protection unit (MPU), high-speed embedded memories (8 Kbytes of SRAM and up to 64 Kbytes of Flash program memory with read, write, proprietary code protection, and securable region), DMA, a wide range of system functions, improved I/Os, and peripherals are all included in the devices. A 12-bit ADC (2.5 MSps) with up to 19 channels, an internal voltage reference buffer, a low-power RTC, an advanced control PWM timer operating at up to twice the CPU frequency, four general-purpose 16-bit timers, a 32-bit general-purpose timer, two low-power 16-bit timers, two watchdog timers, and a SysTick timer are among the standard communication interfaces provided by the devices.

STM32G031G8U6 Features

Core: Arm? 32-bit Cortex?-M0+ CPU, frequency up to 64 MHz
-40°C to 85°C/105°C/125°C operating temperature
Development support: serial wire debug (SWD)
96-bit unique ID
All packages ECOPACK 2 compliant
5-channel DMA controller with flexible mapping
12-bit, 0.4 μs ADC (up to 16 ext. channels)
CRC calculation unit
Reset and power management

STM32G031G8U6 Applications

Power Management
Consumer Electronics
Portable Devices
Industrial
