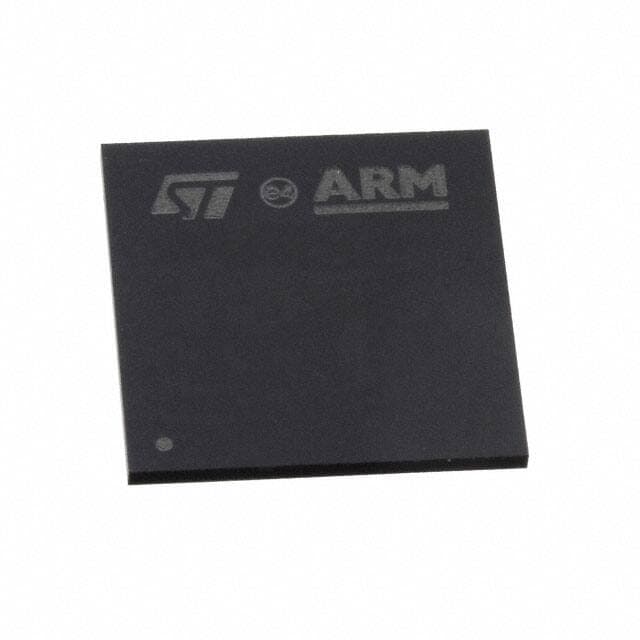

ST STM32F765NIH6

Manufacturer No:

STM32F765NIH6

Manufacturer:

Package:

216-TFBGA

Description:

High-performance and DSP with FPU, Arm Cortex-M7 MCU with 2 Mbytes of Flash memory, 216 MHz CPU, Art Accelerator, L1 cache, SDRAM, DFSDM

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STM32F765NIH6 information

ST STM32F765NIH6 technical specifications, attributes, parameters and parts with similar specifications to ST STM32F765NIH6.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Manufacturer Package Code
TFBGA 13X13X1.2 216L P 0.8 MM

Reach Compliance Code
compliant

ECCN Code
3A991.A.2

HTS Code
8542.31.00.01

Factory Lead Time
15 Weeks

Samacsys Manufacturer
STMicroelectronics

Has ADC
YES

Bit Size
32

Boundary Scan
YES

CPU Family
CORTEX-M7

Clock Frequency-Max
26 MHz

DAC Channels
YES

DMA Channels
YES

Format
FLOATING POINT

Integrated Cache
YES

JESD-30 Code
S-PBGA-B216

Length
13 mm

Low Power Mode
YES

Number of DMA Channels
16

Number of External Interrupts
16

Number of I/O Lines
168

Number of Terminals
216

Number of Timers
16

On Chip Data RAM Width
8

On Chip Program ROM Width
8

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

PWM Channels
YES

Package Body Material
PLASTIC/EPOXY

Package Code
TFBGA

Package Equivalence Code
BGA216,15X15,32

Package Shape
SQUARE

Package Style
GRID ARRAY, THIN PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
NOT SPECIFIED

RAM (bytes)
524288

ROM (words)
2097152

ROM Programmability
FLASH

Seated Height-Max
1.1 mm

Speed
216 MHz

Supply Current-Max
258 mA

Supply Voltage-Max
3.6 V

Supply Voltage-Min
1.8 V

Supply Voltage-Nom
1.8 V

Surface Mount
YES

Download datasheets and manufacturer documentation for ST STM32F765NIH6.

Datasheets:

en.DM00273119.pdf

STM32F765NIH6 Description

The STM32F765xxSTM32F767xxSTM32F768Ax andSTM32F769xx devices are based on the hiah-performanceARMCortex-M732-bit RISC core operatina at up to216MHz frequency. The Cortex-M7 core features a floating pointunit(FPU)which supports ARM double-precision and single-precision data-processing instructions and data tvpes.It also implements a full set of DSP instructions and a memorvprotection unit(MPU)which enhances the application security.The STM32F765xxSTM32F767xxSTM32F768Ax and STM32F769xxdevices incorporate high-speed embedded memories with a Flash memory up to2Mbytes512 Kbytes of SRAM(including 128 Kbytes of Data TCM RAM for critical real-time data)16 Kbytes of instruction TCM RAM(for critical real-timeroutines)4 Kbytes of backup SRAM available in the lowest power modesand an extensive range ofenhanced1/Os and peripherals connected to two APB buses two AHB buses a 32bit multAHB bus matrix and a mult laver Axl interconnect supporting internal and external memories access.

STM32F765NIH6 Features

.Core:ARM 32-bit Cortex-M7 CPU with

DPFPU.ARTAcceleratorandL1-cache16 Kbytes I/D cacheallowing0-waitstate

execution from embedded Flash and externa memoriesup to 216 MHzMPU

462DMIPS/2.14DMIPS/MHz(Dhrystone2.1) and DSP instructions Memories

-Up to2Mbytes of Flash memoryorganized

into two banksallowingread-while-write -SRAM:512 Kbytes(including 128 Kbytes

of data TCM RAM for criticalreal-time data+16 Kbytes ofinstructionTCM RAM(for critical real-timeroutines)+4 Kbytes of backup SRAM

- Flexible external memory controller with up

to 32-bit data bus:SRAMPSRAM SDRAM/LPSDRSDRAMNOR/NAND memories

Dual mode Quad-SPI Graphics

-Chrom-ARTAccelerator(DMA2D)

graphical hardware accelerator enabling enhanced graphical user interface -HardwareJPEG codec

-LCD-TFTcontroller supporting uptoXGA

resolution

-- MIPIDSI host controller supporting up to

720p 30 Hzresolution

Clock, reset and supply management

-1.7Vto3.6VapplicationsupplyandI/Os -POR.PDR.PVDand BOR -Dedicated USB power

-4-t0-26MHzcrystal oscillator

-Internal 16 MHzfactory-trimmed RC(1%

accuracy)

-32 kHz oscillator for RTC with calibration -:Internal32 kHz RC with calibration

STM32F765NIH6 Applications

Motor drive and application control

Medical equipment

Industrial applications PLCinverters circuit breakers

Printers.and scanners

Alarm systems video intercom.and HVAC

Home audio appliances

Mobile applications Internet of Things

Wearable devices smartwatches
