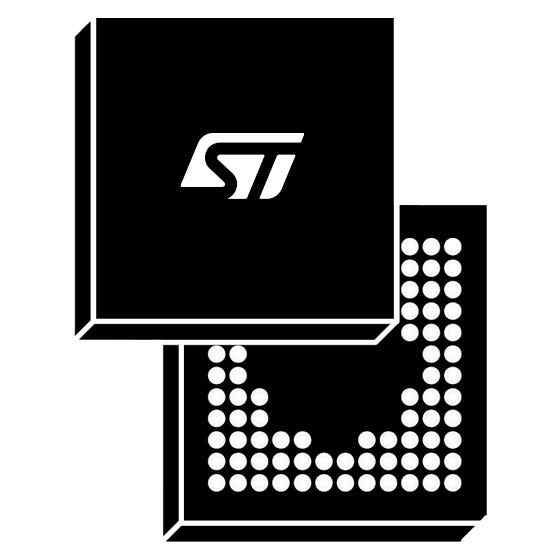

STMicroelectronics STM32F401VEH6TR

Manufacturer No:

STM32F401VEH6TR

Manufacturer:

Package:

Description:

IC MCU 32BIT 512KB FLSH 100UFBGA.ARM® Cortex®-M4 STM32F4 Microcontroller IC 32-Bit 84MHz 512KB (512K x 8) FLASH 100-UFBGA (7x7)

Quantity:

In Stock :6128

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Thu, May 7 - Fri, May 8, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

STM32F401VEH6TR Information

STMicroelectronics STM32F401VEH6TR technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STM32F401VEH6TR.

Type
Parameter

Series
STM32F4

Packaging
Tape & Reel (TR)

Part Status
Active

Manufacturer Lead Time
15 Weeks

Connectivity
I2C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG

Core Processor
ARM® Cortex®-M4

Core Size
32-Bit

Data Converters
A/D 16x12b

Mounting Type
Surface Mount

Number of I/O
81

Type
Parameter

Operating Temperature
-40°C ~ 85°C (TA)

Oscillator Type
Internal

Package / Case
100-UFBGA

Peripherals
Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT

Program Memory Size
512KB (512K x 8)

Program Memory Type
FLASH

RAM Size
96K x 8

Speed
84MHz

Supplier Device Package
100-UFBGA (7x7)

Voltage - Supply (Vcc/Vdd)
1.7V ~ 3.6V

Download datasheets and manufacturer documentation for STMicroelectronics STM32F401VEH6TR.

Data sheet:

stm32f401re.pdf

The STM32F401xD/xE devices are based on the high-performance Arm^® Cortex^® -M4 32-bit RISC core operating at a frequency of up to 84 MHz. The Cortex^®-M4 core features a floating-point unit (FPU) single precision, which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU), which enhances application security.

The STM32F401xD/xE incorporate high-speed embedded memories (512 Kbytes of flash memory, 96 Kbytes of SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

All devices offer one 12-bit ADC, a low-power RTC, six general-purpose 16-bit timers including one PWM timer for motor control, two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces.

Key features

Includes ST state-of-the-art patented technology
Core: Arm^® 32-bit Cortex^®-M4 CPU with FPU, adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from flash memory, frequency up to 84 MHz, memory protection unit, 105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
Memories
- Up to 512 Kbytes of flash memory
- up to 96 Kbytes of SRAM
- 512 bytes of OTP memory
Clock, reset, and supply management
- 1.7 V to 3.6 V application supply and I/Os
- POR, PDR, PVD, and BOR
- 4-to-26 MHz crystal oscillator
- Internal 16 MHz factory-trimmed RC
- 32 kHz oscillator for RTC with calibration
- Internal 32 kHz RC with calibration
Power consumption
- Run: 146 µA/MHz (peripheral off)
- Stop (Flash in Stop mode, fast wake-up time): 42 µA typical at 25 °C; 65 µA max at 25 °C
- Stop (Flash in Deep power down mode, fast wake-up time): down to 10 µA at 25 °C; 30 µA max at 25 °C
- Standby: 2.4 µA at 25 °C / 1.7 V without RTC; 12 µA at 85 °C at 1.7 V
- V_BAT supply for RTC: 1 µA at 25 °C
1×12-bit, 2.4 MSPS A/D converter: up to 16 channels
General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support
Up to 11 timers: up to six 16-bit, two 32-bit timers up to 84 MHz, each with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input, two watchdog timers (independent and window) and a SysTick timer
Debug mode
- Serial wire debug (SWD) & JTAG interfaces
- Cortex^Ò-M4 Embedded Trace Macrocell™
Up to 81 I/O ports with interrupt capability
- Up to 78 fast I/Os up to 42 MHz
- All I/O ports are 5 V-tolerant
Up to 12 communication interfaces
- Up to 3 x I²C interfaces (SMBus/PMBus)
- Up to 3 USARTs (2 x 10.5 Mbit/s, 1 x 5.25 Mbit/s), ISO 7816 interface, LIN, IrDA, modem control)
- Up to 4 SPIs (up to 42Mbit/s at f_CPU = 84 MHz), SPI2 and SPI3 with muxed full-duplex I²S to achieve audio class accuracy via internal audio PLL or external clock
- SDIO interface
- Advanced connectivity: USB 2.0 full-speed device/host/OTG controller with on-chip PHY
CRC calculation unit
96-bit unique ID
RTC: subsecond accuracy, hardware calendar
All packages are ECOPACK2 compliant
