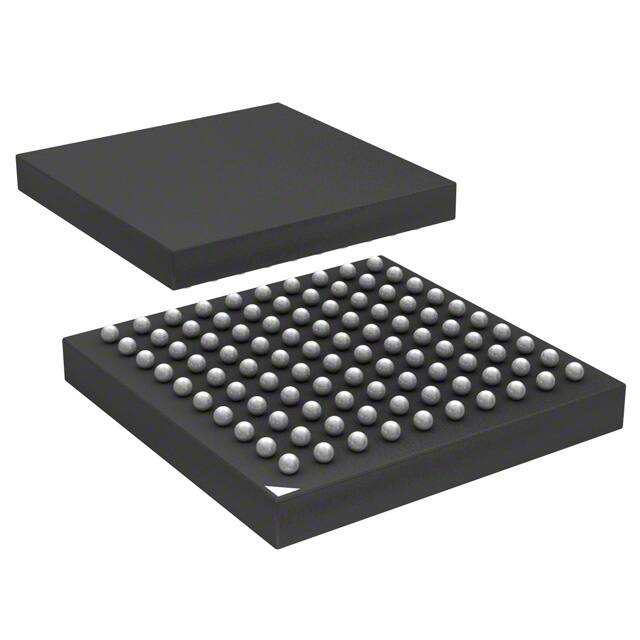

ST STM32F103VDH6TR
Manufacturer No:
STM32F103VDH6TR
Manufacturer:
Package:
100-LFBGA
Description:
384KB 384K x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller STM32F1 Series STM32F103 100 Pin 72MHz 3.3V 100-LFBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
STM32F103VDH6TR information
ST STM32F103VDH6TR technical specifications, attributes, parameters and parts with similar specifications to ST STM32F103VDH6TR.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 7 months ago)
- Factory Lead Time
- 10 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 100-LFBGA
- Surface Mount
- YES
- Number of Pins
- 100
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- Series
- STM32F1
- JESD-609 Code
- e1
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 100
- ECCN Code
- 3A991.A.2
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- Max Power Dissipation
- 500mW
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Supply Voltage
- 3.3V
- Frequency
- 72MHz
- Base Part Number
- STM32F103
- Pin Count
- 100
- Supply Voltage-Max (Vsup)
- 3.6V
- Interface
- CAN, I2C, IrDA, LIN, SPI, UART, USART, USB
- Memory Size
- 384kB
- Oscillator Type
- Internal
- Number of I/O
- 80
- RAM Size
- 64K x 8
- Voltage - Supply (Vcc/Vdd)
- 2V~3.6V
- uPs/uCs/Peripheral ICs Type
- MICROCONTROLLER, RISC
- Core Processor
- ARM® Cortex®-M3
- Peripherals
- DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
- Program Memory Type
- FLASH
- Core Size
- 32-Bit
- Program Memory Size
- 384KB 384K x 8
- Connectivity
- CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
- Supply Current-Max
- 69mA
- Bit Size
- 32
- Data Converter
- A/D 16x12b; D/A 2x12b
- Watchdog Timer
- Yes
- Has ADC
- YES
- DMA Channels
- YES
- Data Bus Width
- 32b
- PWM Channels
- YES
- DAC Channels
- YES
- Number of Timers/Counters
- 8
Download datasheets and manufacturer documentation for ST STM32F103VDH6TR.
STM32F103VDH6TR Overview
In a 100-LFBGA package, the MCU is available. 80 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 32-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. STM32F1 series components make up this electrical component. 384KB 384K x 8 is the size of its program memory. A ARM® Cortex®-M3 Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 100 is the number of terminations on the IC chip that are present. This part works in a 32-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number YES. 384kB is the memory size of the part. The base part number STM32F103 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 72MHz. The device works in YES PWM channels. Located on the chip are 100 pins. The clock has 8 timers or counters on it. There are 100 pins on it. In this device, there is a CORTEX-M3 CPU embedded within it. There is an integrated ARM core architecture in it. This part contains 16 external interrupts which provide a high level of flexibility.
