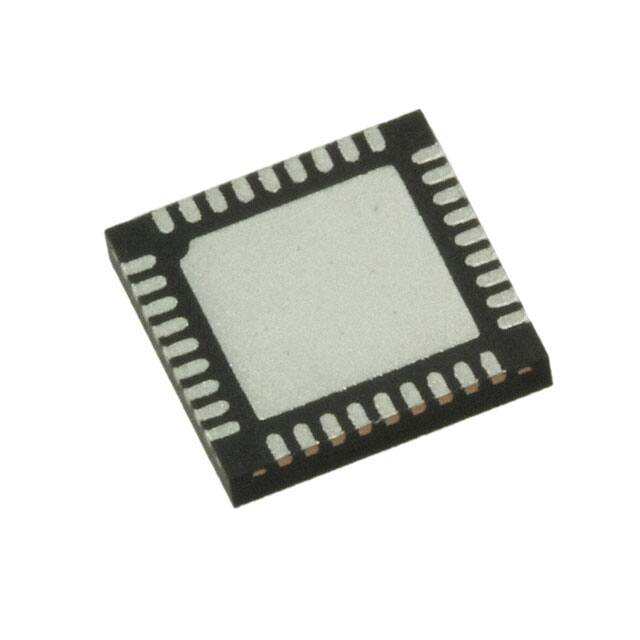

ST STM32F101T6U6

Manufacturer No:

STM32F101T6U6

Manufacturer:

Package:

36-VFQFN Exposed Pad

Description:

32KB 32K x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller STM32F1 Series STM32F101 36 Pin 36MHz 3.3V 36-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STM32F101T6U6 information

ST STM32F101T6U6 technical specifications, attributes, parameters and parts with similar specifications to ST STM32F101T6U6.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
36-VFQFN Exposed Pad

Number of Pins
36

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
STM32F1

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
36

Terminal Finish
Matte Tin (Sn) - annealed

Subcategory
Microcontrollers

Max Power Dissipation
1.11W

Technology
CMOS

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
36MHz

Base Part Number
STM32F101

Pin Count
36

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
2V

Memory Size
32kB

Oscillator Type
Internal

Number of I/O
26

RAM Size
6K x 8

Voltage - Supply (Vcc/Vdd)
2V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Number of Bits
32

Core Processor
ARM® Cortex®-M3

Peripherals
DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
32KB 32K x 8

Connectivity
I2C, IrDA, LINbus, SPI, UART/USART

Bit Size
32

Data Converter
A/D 10x12b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

Number of Timers/Counters
2

Address Bus Width
32b

Core Architecture
ARM

CPU Family
CORTEX-M3

Download datasheets and manufacturer documentation for ST STM32F101T6U6.

Datasheets:

stmicroelectronics-stm32f101c6t6a-datasheets-2556.pdf

stmicroelectronics-stm32f101t6u6-datasheets-1407.pdf

stmicroelectronics-stm32f101t6u6-datasheets-1408.pdf

stmicroelectronics-stm32f101t6u6-datasheets-1409.pdf

STM32F101T6U6 Overview

36-VFQFN Exposed Pad-packages are available. There are 26 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 32-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the STM32F1 series. This program memory has a size of 32KB 32K x 8, which indicates what the size of the program memory is. ARM® Cortex®-M3 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 36 terminations on MCU chip. You get a 32-bit size. This Microcontroller chip is powered by 3.3V volts. There are YES DMA channels on this Microcontroller chip. The part has a memory size of 32kB. The base part number STM32F101 provides alternatives. This device is extremely efficient when operated at a frequency of 36MHz. In this chip, 36 pins can be accessed. Using the timer/counter system, it has 2 timers/counters. It has 36 pins in total. In addition to this, the device is embedded with the the CORTEX-M3 CPU family. As a result of its ARM core architecture, it can be used in many applications. In total, it has 10 ADC channels for the measurement of signals. There are 32 bits on a chip. As far as the PWM channel count is concerned, the device makes use of 4 channels. As part of the design, the part has been designed to feature 1 channels for I2C communication.

STM32F101T6U6 Features

36-VFQFN Exposed Pad package
Mounting type of Surface Mount
Microcontrollers subcategory
