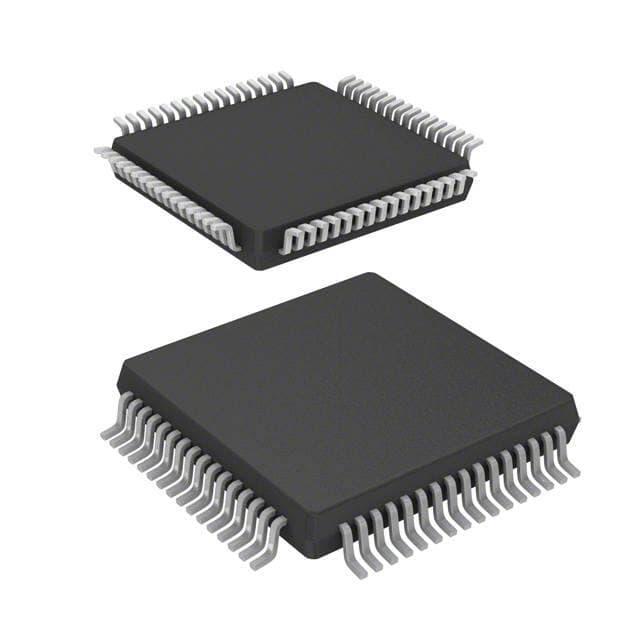

ST STM32F101R6T6
Manufacturer No:
STM32F101R6T6
Manufacturer:
Package:
64-LQFP
Description:
32KB 32K x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller STM32F1 Series STM32F101 64 Pin 36MHz 3.3V 64-LQFP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
STM32F101R6T6 information
ST STM32F101R6T6 technical specifications, attributes, parameters and parts with similar specifications to ST STM32F101R6T6.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 64-LQFP
- Number of Pins
- 64
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tray
- Series
- STM32F1
- JESD-609 Code
- e3
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 64
- Termination
- SMD/SMT
- Terminal Finish
- MATTE TIN
- Subcategory
- Microcontrollers
- Max Power Dissipation
- 444mW
- Technology
- CMOS
- Terminal Position
- QUAD
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 225
- Supply Voltage
- 3.3V
- Frequency
- 36MHz
- Base Part Number
- STM32F101
- Pin Count
- 64
- Supply Voltage-Max (Vsup)
- 3.6V
- Interface
- I2C, IrDA, LIN, SPI, UART, USART
- Memory Size
- 32kB
- Oscillator Type
- Internal
- Number of I/O
- 51
- RAM Size
- 6K x 8
- Voltage - Supply (Vcc/Vdd)
- 2V~3.6V
- uPs/uCs/Peripheral ICs Type
- MICROCONTROLLER, RISC
- Number of Bits
- 32
- Core Processor
- ARM® Cortex®-M3
- Peripherals
- DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT
- Program Memory Type
- FLASH
- Core Size
- 32-Bit
- Program Memory Size
- 32KB 32K x 8
- Connectivity
- I2C, IrDA, LINbus, SPI, UART/USART
- Bit Size
- 32
- Data Converter
- A/D 16x12b
- Watchdog Timer
- Yes
- Has ADC
- YES
- DMA Channels
- YES
- Data Bus Width
- 32b
- Number of Timers/Counters
- 2
- Address Bus Width
- 32b
- Density
- 256 kb
Download datasheets and manufacturer documentation for ST STM32F101R6T6.
Datasheets:
STM32F101R6T6 Description
The STM32F101x4 and STM32F101x6 low-density access line series integrates a high-performance ARM Cortex - M3 32-bit RISC core running at 36 MHz, high-speed embedded memory (16 to 32 K bytes of flash memory and 4 to 6 K bytes of SRAM), and a variety of enhanced peripherals and Icano connected to two APB buses. All devices provide standard communication interfaces (one I2C, one SPI and two USART), a 12-bit ADC and up to two universal 16-bit timers. The STM32F101xx low-density access line series operates in the temperature range of-40 to + 85 °C with a power supply voltage of 2.0 to 3.6V. A comprehensive set of power-saving modes allows the design of low-power applications. The STM32F101xx low-density access line series includes three different packages, ranging from 36 to 64 pins. Depending on the device selected, including different peripheral groups, the following description outlines the full range of peripherals recommended in this series
STM32F101R6T6 Features
? Core: ARM? 32-bit Cortex?-M3 CPU
? 36 MHz maximum frequency,
1.25 DMIPS/MHz (Dhrystone 2.1)
performance at 0 wait state memory
access
? Single-cycle multiplication and hardware
division
? Memories
? 16 to 32 Kbytes of Flash memory
? 4 to 6 Kbytes of SRAM
? Clock, reset and supply management
? 2.0 to 3.6 V application supply and I/Os
? POR, PDR and programmable voltage
detector (PVD)
? 4-to-16 MHz crystal oscillator
? Internal 8 MHz factory-trimmed RC
? Internal 40 kHz RC
? PLL for CPU clock
? 32 kHz oscillator for RTC with calibration
? Low power
? Sleep, Stop and Standby modes
? VBAT supply for RTC and backup registers
? Debug mode
? Serial wire debug (SWD) and JTAG
interfaces
? DMA
? 7-channel DMA controller
? Peripherals supported: timers, ADC, SPIs
2Cs and USARTs
? 1 × 12-bit, 1 ?s A/D converter (up to 16
channels)
? Conversion range: 0 to 3.6 V
? Temperature sensor
STM32F101R6T6 Applications
ow-power applications
