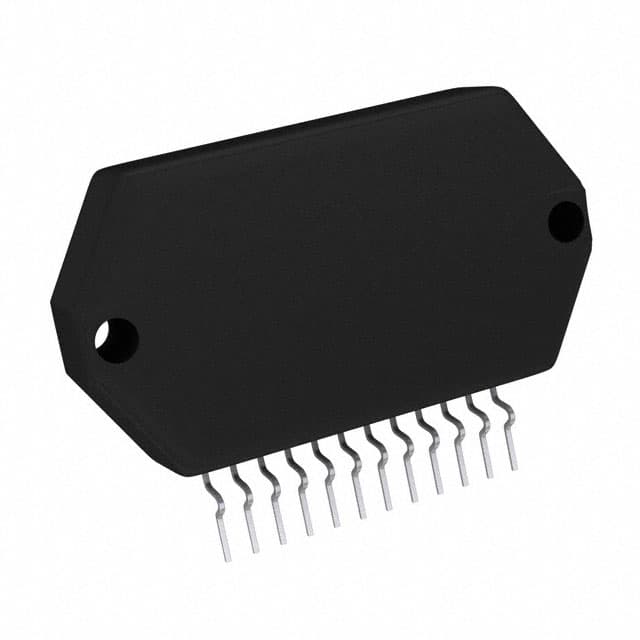

ONSEMI STK672-540

Manufacturer No:

STK672-540

Manufacturer:

ONSEMI

Package:

12-SIP Formed Leads

Description:

25.6mm mm 8.5mm mm Motor Drivers 12 5V V 44mm mm Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STK672-540 information

ONSEMI STK672-540 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI STK672-540.

Type
Parameter

Lifecycle Status
LIFETIME (Last Updated: 4 days ago)

Mount
Surface Mount, Through Hole

Mounting Type
Surface Mount

Package / Case
12-SIP Formed Leads

Number of Pins
10

Operating Temperature
0°C~105°C TC

Packaging
Bulk

Published
2013

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

Terminal Finish
Tin/Nickel/Copper (Sn/Ni/Cu)

Applications
General Purpose

HTS Code
8542.39.00.01

Subcategory
Motion Control Electronics

Technology
Power MOSFET

Voltage - Supply
4.75V~5.25V

Terminal Position
SINGLE

Supply Voltage
5V

Base Part Number
STK672

JESD-30 Code
R-XSFM-T12

Function
Driver - Fully Integrated, Control and Power Stage

Power Supplies
524V

Supply Voltage-Min (Vsup)
4.75V

Interface
Parallel

Analog IC - Other Type
STEPPER MOTOR CONTROLLER

Output Configuration
Half Bridge (2)

Current - Output
3.3A

Logic Function
AND

Supply Current-Max (Isup)
7mA

Voltage - Load
10V~42V

Motor Type - Stepper
Unipolar

Step Resolution
1, 1/2

Height
25.6mm

Length
44mm

Width
8.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI STK672-540.

Datasheets:

onsemiconductor-stk672540-datasheets-3481.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

STK672-540 Overview

Drivers controllers is designed wDrivers controllersh a package of [0].A 12-SIP Formed Leadscase is included with the part.Ideally, the part should be mounted by Surface Mount.This component is suitable for the component connected to General Purpose.Drivers controllers is capable of supplying 4.75V~5.25V volts.This device operates at a temperature range of 0°C~105°C TC.This part offers 12terminations.Drivers controllers is possible to apply voltage to the load at the rate of 10V~42V.Drivers controllers is important to remember that this amplifier should be run at 5V.A Surface Mount, Through Holemounting method is recommended for this product.Set the part's output current to 3.3A.In this device, the analog IC STEPPER MOTOR CONTROLLERis employed.As a result of the STK672part number, it can be found.This device is designed with a pin count of 10.Drivers controllers is part of the series [0].
