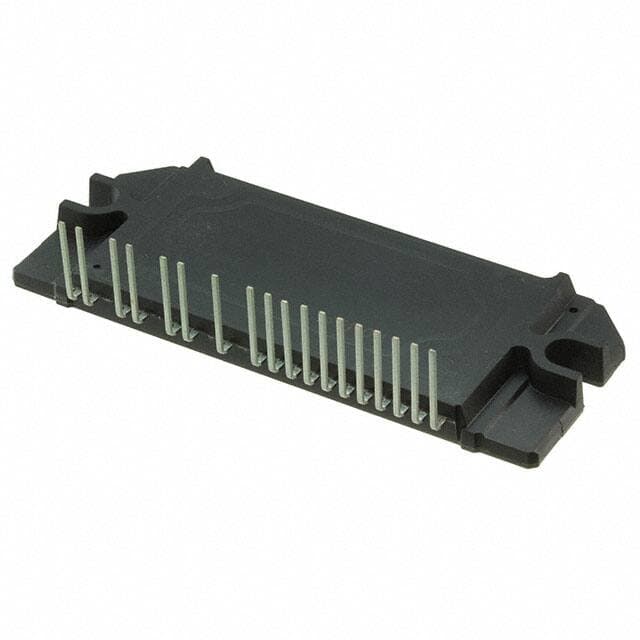

ONSEMI STK581U3C2D-E

Manufacturer No:

STK581U3C2D-E

Manufacturer:

ONSEMI

Package:

22-SIP, 18 Leads, Formed Leads

Description:

Tube 22-SIP, 18 Leads, Formed Leads Logic 12.5V~17.5V Through Hole -40°C~150°C TJ AC Motors Half Bridge (3) Inductive 450V Max

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STK581U3C2D-E information

ONSEMI STK581U3C2D-E technical specifications, attributes, parameters and parts with similar specifications to ONSEMI STK581U3C2D-E.

Type
Parameter

Lifecycle Status
ACTIVE, NOT REC (Last Updated: 4 hours ago)

Factory Lead Time
20 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
22-SIP, 18 Leads, Formed Leads

Number of Pins
22

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Published
2016

JESD-609 Code
e2

Feature
Bootstrap Circuit, Status Flag

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
18

Terminal Finish
Tin/Nickel (Sn/Ni)

Applications
AC Motors

Max Power Dissipation
49W

Technology
IGBT

Voltage - Supply
12.5V~17.5V

Terminal Position
SINGLE

Number of Functions
1

Supply Voltage
280V

Frequency
20kHz

Number of Outputs
3

Max Output Current
45A

Operating Supply Voltage
15V

Supply Voltage-Max (Vsup)
450V

Interface
Logic

Analog IC - Other Type
AC MOTOR CONTROLLER

Output Configuration
Half Bridge (3)

Output Current
30A

Output Current per Channel
30A

Collector Emitter Voltage (VCEO)
600V

Max Collector Current
30A

Voltage - Load
450V Max

Fault Protection
Current Limiting, UVLO

Current - Peak Output
45A

Load Type
Inductive

Height
6mm

Length
78mm

Width
31.1mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI STK581U3C2D-E.

Datasheets:

onsemiconductor-stk581u3c2de-datasheets-4966.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

STK581U3C2D-E Overview

H bridge is packaged using Tube.H bridge is provided in the 22-SIP, 18 Leads, Formed Leads package for the sake of cost savings.Improved reliabilbridge drivery can be ensured based on the supply voltage of 12.5V~17.5V.H bridge circuit is mounted in the way of Through Hole.The operating temperature of -40°C~150°C TJ enables motor driver H bridge to work normally.H bridge motor driver is pretty useful in a wide range of applications, including AC Motors.Through Hole is adopted as a technique to mount H gate on the PCB.H gates specific characteristics also include Bootstrap Circuit, Status Flag.There are 18 terminations used to end a transmission line with the H bridge that matches the characteristic impedance of the line.22 pins is used as pronged contacts as H bridge ic of a signal interface.H bridge circuit operates with the supply voltage of 280V.H bridge circuit is incorporated with AC MOTOR CONTROLLER as its analog IC type.The maximum load current that power supply can provide at a specified ambient temperature reaches 45A.The maximum amount of current which output reaches 45A.There is 30A current flowing through the output and power supply pins.It is equipped with 3 outputs.The operating supply voltage is kept at 15V to offer high efficiency.
