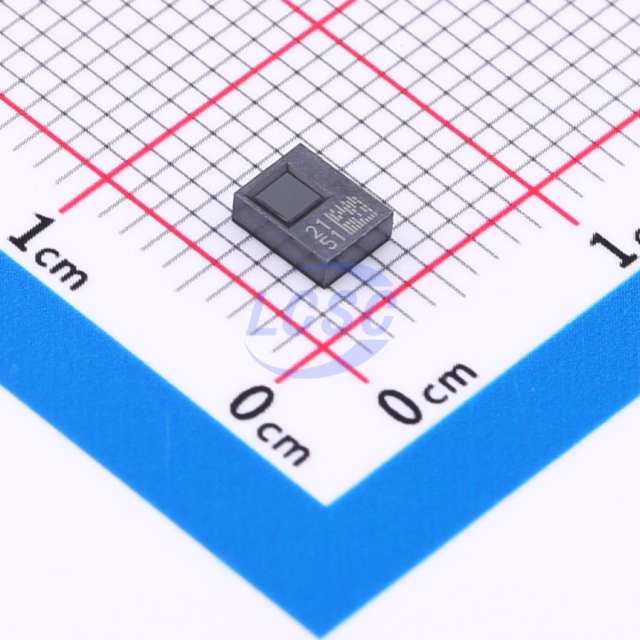

STMicroelectronics STHS34PF80TR
Manufacturer No:
STHS34PF80TR
Manufacturer:
Package:
Description:
Infrared Detectors Low-power, high-sensitivity infrared sensor for presence and motion detection
Quantity:
In Stock :3834
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
STHS34PF80TR Information
STMicroelectronics STHS34PF80TR technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STHS34PF80TR.
- Type
- Parameter
- Operating Temp Min Celsius
- -40.0
- Operating Temp Max Celsius
- 85.0
- ECCN US
- EAR99
- ECCN EU
- NEC
- Package Size
- 3.2 x 4.2 x 1.455
- Packing Type
- Tape And Reel
- RoHS Status
- Grade
- Industrial
- Package Name
- LGA 3.2X4.2X1.455MM 10L 0.5MM
- Operating Temp Min Celsius
- -40.0
- Type
- Parameter
- Operating Temp Max Celsius
- 85.0
- ECCN US
- EAR99
- ECCN EU
- NEC
- Package Size
- 3.2 x 4.2 x 1.455
- Packing Type
- Tape And Reel
- RoHS Status
- Grade
- Industrial
- Package Name
- LGA 3.2X4.2X1.455MM 10L 0.5MM
Download datasheets and manufacturer documentation for STMicroelectronics STHS34PF80TR.
Data sheet:
The STHS34PF80 is an uncooled, factory-calibrated, infrared motion and presence detection sensor with operating wavelength between 5 µm and 20 µm.
The STHS34PF80 sensor has been designed to measure the amount of IR radiation emitted from an object within its field of view. The information is digitally processed by the ASIC, which can be programmed to monitor motion, presence, or an overtemperature condition.
Thanks to its exceptional sensitivity, the STHS34PF80 can detect the presence of a human being at a distance up to 4 meters without the need of an optical lens.
The STHS34PF80 is housed in a small 3.2 x 4.2 x 1.455 (max) mm 10-lead LGA package.
- Key features
- High-sensitivity infrared presence and motion detection sensor
- Reach up to 4 meters without lens for objects measuring 70 x 25 cm²
- Integrated silicon IR filter
- SMD friendly
- Capable of detecting stationary objects
- Capable of distinguishing between stationary and moving objects
- 80° field of view
- Factory calibrated
- Low power
- Embedded smart algorithm for presence / motion detection
- Electrical specifications
- Supply voltage: 1.7 V to 3.6 V
- Supply current: 10 µA
- 2-wire I²C / 3-wire SPI serial interface
- Programmable ODRs from 0.25 Hz to 30 Hz
- One-shot mode
- Sensing specifications
- IR sensitivity: 2000 LSB/°C
- RMS noise: 25 LSBrms
- Operating wavelength: 5 µm to 20 µm
- Local temperature sensor accuracy: ±0.3 °C
- Package specifications
- LGA 10-lead, 3.2 x 4.2 x 1.455 (max) mm
- ECOPACK and RoHS compliant
